• DSA72004C Tektronix Digital Oscilloscope
1 1
Used
Compare
lab tested

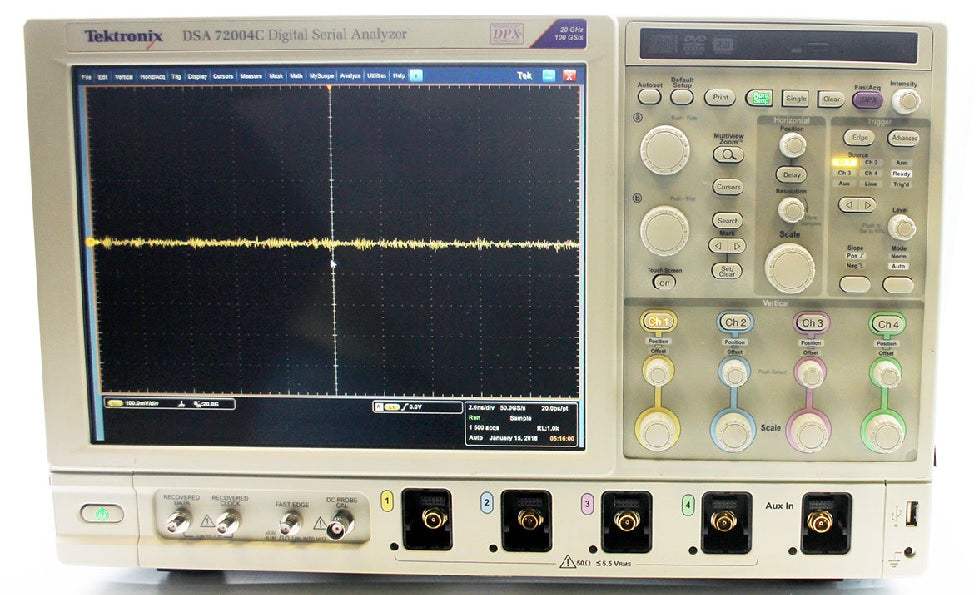

DSA72004C Tektronix Digital Oscilloscope Used

DSA72004C Tektronix Digital Oscilloscope Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Uncompromised Bandwidth – Up to 33 GHz analog bandwidth and rise time as fast as 9 ps enables measurement on the latest high-speed serial standards
  • True 33 GHz Real-time Analog Bandwidth on 2 Channels with 33 GHz Models
  • Industry-leading Sample Rate and Timing Resolution
  • 100 GS/s on 2 Channels (33, 25, 20, 16, and 12.5 GHz models)
  • Four-channel Simultaneous Performance
  • Up to 23 GHz Bandwidth
  • Up to 50 GS/s Real-time Sample Rate
  • Up to 250 Megasample Record Length with MultiView Zoom™ Feature for Quick Navigation
  • Fastest Waveform Capture Rate with >300,000 wfms/s Maximum per Channel
  • Superior Signal Integrity and Excellent Signal-to-Noise Ratio – Observe the truest representation of your waveform
  • Pinpoint® Triggering – Minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
  • Visual Trigger – Precisely qualify triggers and find unique events in complex waveforms
  • 6.25 Gb/s Real-time Serial Trigger – Assures triggering on the first instance of a specified NRZ or 8b/10b pattern to allow isolation of pattern-dependent effects
  • Search & Mark – Provides waveform or serial bus pattern matching and software triggers for signals of interest
  • Automated Serial Triggering and Decode Options for 8b10b Encoded Serial Data, I2C, SPI, RS-232/422/485/UART, USB 2.0, and MIPI® D-PHY
  • P7500 TriMode™ Probing System – Perfectly matched signal connectivity
  • Application Support for High-speed Serial Industry Standards, wideband RF, Power Supplies, and Memory – Enables standard-specific certification, measurement automation, and ease of use
Share on
View full details
More Details
Specifications
Options
Datasheets

Applications:

  • Design Verification including Signal Integrity, Jitter, and Timing Analysis
  • Design Characterization for High-speed, Sophisticated Designs
  • Certification Testing of Serial Data Streams for Industry Standards
  • Memory Bus Analysis and Debug
  • Prototype Turn-on and Power Supply Verification
  • Research and Investigation of Transient Phenomena
  • Production Testing of Complex Systems
  • Spectral Analysis of Transient or Wide-bandwidth RF Signals

Specifications:

  • 20 GHz
  • 100 GS/s - 50 GS/s
  • 31 MS
  • 4 Channel

The Tektronix DSA72004C is a digital serial analyzer. The superior signal integrity and excellent signal-to-noise ratio of the DSA72004C ensures confidence in your measurement results.

Model No

DSA72004C

Condition

Used

Manufacturer

Tektronix

Channels

4

Frequency

20 GHz

Record length

31 MPts

Sampling rate

100 GS/s

2XL

31.25 MS/Ch Record Length

ASM

Advanced Event Search and Mark

DDRA

Upgrade to Option DDRA

DJA

DPOJET Jitter and Eye Diagram Analysis

MTH

Mask testing for Serial Standards. Includes hardware clock recovery for up to 3.125 Gb/s

PCE

PCI Expresss Compliance Module

PTD

Protocol Decoding for 8b/10b-encoded Serial Signals

PTH1

3.125Gb/s Serial Pattern Trigger

SR-810B

8b/10b Serial Analysis

STU

Increase Protocol Triggering and Decoding from 3.125 Gb/s to 6.25 Gb/s

TDSPTD

Protocol Trigger and Decode

DPO-DSA-MSO70000C & D
Compare All Models
