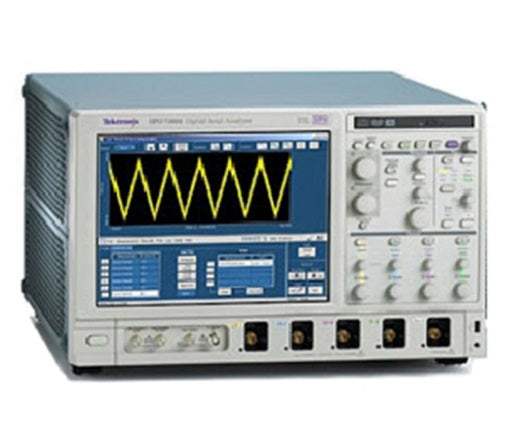

DSA70604 Tektronix Digital Oscilloscope Used

DSA70604 Tektronix Digital Oscilloscope Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 8, 6, and 4 GHz Bandwidth Models
  • 8, 6, and 4 GHz Digital Serial Analyzer Models with Dedicated Features for High Speed Serial Design and Compliance Testing
  • Up to 25 GS/s Real-time Sample Rate on All Four Channels
  • Up to 100 Megasamples Record Length with MultiView ZoomT Feature for Quick Navigation
  • >250,000 wfms/s Maximum Waveform Capture Rate
  • Pinpoint® Triggering Provides the Most Flexible and Highest Performance Triggering, with 1400 Other Combinations to Address Virtually Any Triggering Situation
  • Serial Pattern Triggering up to 3.125 Gb/s with 8 b/10 b Protocol Triggering for Isolation of Pattern-dependent Effects
  • PCI Express, Serial ATA, FB-DIMM, SAS, Fibre Channel, IEEE1394b, RapidIO, XAUI, HDMI, DVI, Ethernet, USB 2.0 Compliance Testing, Jitter and Timing Measurements, Power Measurements
  • 12.1" Largest XGA Touch Screen Display in the Industry
  • MyScope® Custom Windows Enhance Productivity
  • Right Mouse Click Menus for Exceptional Efficiency
  • Serial Data Compliance Testing, Decoding, and Protocol Triggering
  • OpenChoice® Software with Microsoft Windows XP OS Enables Built-in Networking and Extended Analysis
Share on
View full details
More Details
Specifications
Datasheets

Applications:

  • Signal Integrity, Jitter and Timing Analysis
  • Verification, Debug and Characterization of Sophisticated Designs
  • Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards
  • Investigation of Transient Phenomena
  • Power Measurements and Analysis
  • Spectral Analysis

Specifications:

  • 6 GHz
  • 4 Channel
  • 25 GS/s
  • 20 MPts

The DSA70604 is a 6 GHz, 4 Channel, 25 GS/s, 20 MPts digital oscilloscope from Tektronix.

Model No

DSA70604

Condition

Used

Manufacturer

Tektronix

Channels

4

Frequency

6 GHz

Record length

20 MPts

Sampling rate

25 GS/s

Tektronix DPO7000 DSA7000 Series
