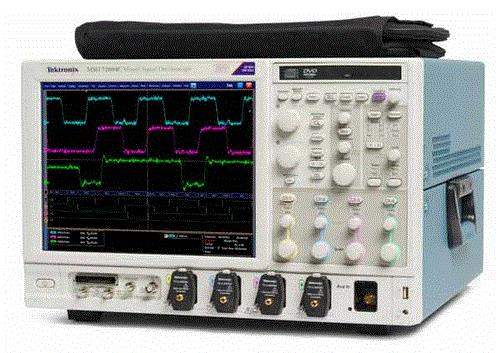

• DPO70404C Tektronix Digital Oscilloscope
1 1
Used
Compare
lab tested

DPO70404C Tektronix Digital Oscilloscope Used

DPO70404C Tektronix Digital Oscilloscope Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Bandwidth: 4 GHz
  • Channels: 4
  • Sample rate: 25 GS/s
  • Record Length: 10M
  • Sample rate up to 125 M with options
  • Rise Time (typical): 10% to 90%: 98 ps; 20% to 80%: 68 ps
  • Superior signal integrity and excellent signal-to-noise ratio – observe the truest representation of your waveform
  • Pinpoint® triggering – minimize time spent trying to acquire problem signals for efficient troubleshooting and shortened debug time
  • Visual Trigger – precisely qualify triggers and find unique events in complex waveforms
  • Unique iCapture® capability enables viewing analog characteristics of digital channels with single probe connection
  • Search and Mark – provides waveform or serial bus pattern matching and software triggers for signals of interest
  • Automated Serial Analysis options for PCI Express, 8b/10b encoded serial data, I2C, SPI, CAN, LIN, FlexRay, RS-232/422/485/UART, USB 2.0, HSIC, MIL-STD-1553B, and MIPI® C-PHY, D-PHY and M-PHY
  • Application Support for High-speed Serial Industry Standards, wideband RF, Power supplies, and memory – Enables standardspecific certification, measurement automation, and ease of use
  • USB 2.0 host port on both the front panel and rear panel for quick and easy data storage, printing, and connecting a USB keyboard
  • Integrated 10/100 Ethernet port for network connection and Video Out port to export the oscilloscope display to a monitor or projector
Share on
View full details
More Details
Specifications
Datasheets

Applications:

  • Design verification including signal integrity, jitter, and timing analysis
  • Design characterization for high-speed, sophisticated designs
  • Certification testing of serial data streams for industry standards
  • Memory bus analysis and debug
  • Prototype turn-on and power supply verification
  • Research and investigation of transient phenomena
  • Production testing of complex systems
  • Spectral analysis of transient or wide-bandwidth RF signals

The DPO70404C is the most accurate real-time performance oscilloscope on the market. Discover critical signal information with a 4 channel system bandwidth of 4 GHz combined with the highest waveform capture capability for low noise, high margin visibility.

Model No

DPO70404C

Condition

Used

Manufacturer

Tektronix

Channels

4

Frequency

4 GHz

Record length

10 MPts

Sampling rate

25 GS/s
