7623A Tektronix Digital Oscilloscope Used

7623A Tektronix Digital Oscilloscope Used

Check Pricing
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Bandwidth: 100 MHz with 7A11, 7A16, 7A17 and similar amplifiers; 75 MHz with 7A13, 7A18
  • Channels: 2
  • Sample Rate: 10 GS/s
  • Record Length: 40 Mpts
  • 3.5 ns Rise time 5-ns/Div
  • 5.25-Inch Rackmount height
  • Deflection Factor - determined by plug-in
Share on
View full details
More Details
Specifications
Datasheets

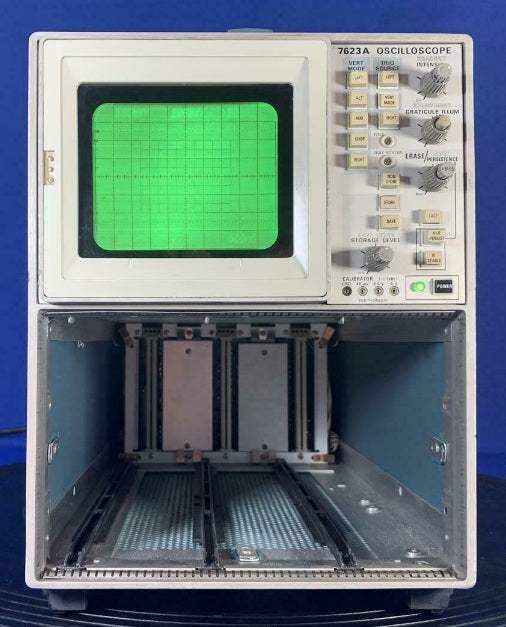

The Tektronix 7623A Storage Oscilloscope is a multi-mode storage mainframe which uses a wide variety of plug-ins including logic analyzers, spectrum analyzers, sampling scopes, and of course, oscilloscopes. This three-compartment mainframe has a stored writing rate of 135 cm/µs with display modes of Store, Nonstore, and Save. Store modes include bi-stable, variable persistence, fast bi-stable, and fast variable persistence.

Model No

7623A

Condition

Used

Manufacturer

Tektronix

Channels

2

Frequency

100 MHz

Record length

40 MPts

Sampling rate

10 GS/s
