7A18A Tektronix Analog Oscilloscope Used

7A18A Tektronix Analog Oscilloscope Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Bandwidth: Upper bandwidth DC coupled: 75 MHz; Lower bandwidth AC coupled: ≤10 Hz; with 10X probe: 1 Hz or less
  • Calibrated deflection factors: 5 mV/div to 5 V/div; Uncalibrated (VARIABLE): Continuous to at least 12.5 V/div
  • Input: 1 MΩ, ~20 pF
  • Maximum input voltage: DC-coupled - 250 V (DC + peak AC); AC-coupled - 500 V (DC + peak AC)
  • Common Mode Rejection Ratio (ADD, Ch 2 Invert): At least 10:1
  • Channel isolation: 50:1 display ratio up to 50 MHz
  • Displayed noise (tangentially measured): 0.06 div or less
  • Overdrive recovery time: ≤0.1 ms
  • Time delay between channels: ≤700 ps
  • Display modes: Channel 1 only, Dual-trace, alternate between channels, Added algebraically, Dual-trace chopped between channels, Channel 2 only
Share on
View full details
More Details
Specifications
Datasheets

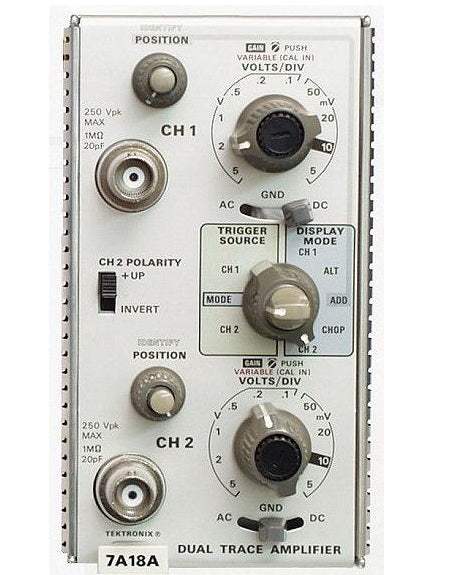

The Tektronix 7A18A dual trace amplifier plug-in unit is designed for use with Tektronix 7000 Series oscilloscopes. The 7A18A is a dual-channel, medium-bandwidth amplifier. Internal gain and compensation circuits are automatically switched to correspond to the setting of the Volts/Div switch. Channel 2 can be inverted for differential measurements. The 7A18A can be operated in any plug-in compartment of the 7000 Series oscilloscopes.

Model No

7A18A

Condition

Used

Manufacturer

Tektronix

Channels

2

Frequency

75 MHz

Tektronix_7000_Series_Plugins
