7A13 Tektronix Analog Oscilloscope Used

Name: 7A13 Tektronix Analog Oscilloscope Used
Brand: Tektronix
SKU: tektro_7a13
Availability: OutOfStock

Calibrations None ISO IEC 17025 Accredited

Product variants

check availability

Request a Quote

Request a Quote To Get A EDU Discount

Features:

Differential Comparator Plug-In Module 7000 Series Oscilloscopes
Bandwidth: 100 MHz (in 7700 or faster mainframes)
Rise time: 3.5 ns
Deflection factor: 1 mV/Div – 5 V/Div (1–2–5 sequence)
Common Mode range: at least +10 V / −10 V from 1 mV/Div to 5 mV/Div, +100 V / −100 V from 10 mV/Div to 50 mV/Div, +500 V / −500 V from 100 mV/Div to 5 V/Div
Overdrive Recovery: to within 2 mV in 1µs (at 1 mV/Div)
CMRR: at least 10,000:1 for 10 Vp-p or less, 100 kHz to 1 MHz, decreasing to 500:1 at 10 MHz with 1 Vp-p, 200:1 at 20 MHz with 1 Vp-p
Input impedance: 1 MΩ // 20 pF
Comparison voltage: −10 V to +10 V
Warmup time: 5 minutes for short-term measurements, 1 hour for best stability

Share on

More Details

Specifications

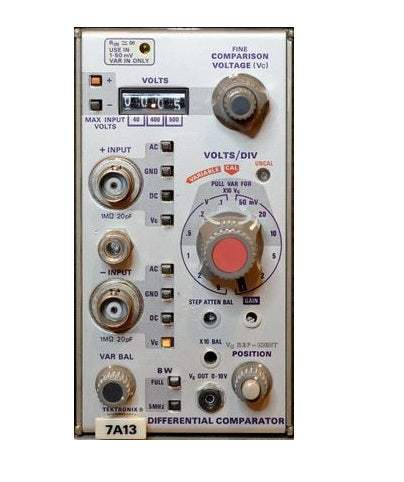

The Tektronix 7A13 is a differential comparator vertical plug-in for 7000-series scopes.

The image is a representation of selection. See specifications for product details.

Model No

7A13

Condition

Used

Manufacturer

Tektronix

Channels

Frequency

100 MHz
