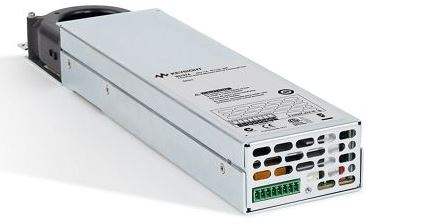

• N6782A Keysight Technologies Sourcemeter
1 1
New
Earn Loyalty with Rewards
Compare

N6782A Keysight Sourcemeter New

N6782A Keysight Sourcemeter New

$6,593
$6,593 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

Output Ratings:

  • voltage: Up to 20 V
  • current: Up to ±3 A
  • power: 20 W
View full details
More Details
Specifications
Datasheets

Programming Accuracy (at 23°C ± 5°C after 30 minute warm-up. Applies from min. to max. program):

  • voltage, 20 V range: 0.025% + 1.8 mV
  • voltage, 6 V range: 0.025% + 600 µV
  • current, 3 A and 1 A ranges: 0.04% + 300 µA
  • current, 300 mA range: 0.03% + 150 µA

Output Programming Speed:

  • output voltage can change in 10 µs or at 100 kHz into a resistive load

Measurement Accuracy (at 23°C ± 5°C):

  • voltage, 20 V range: 0.025% + 1.2 mV*
  • current, 3 A range: 0.03% + 250 µA*
  • current, 100 mA range: 0.025% + 10 µA*
  • current 10 µA range: 0.025% + 8 nA

The Keysight N6782A is a source/measure unit (SMU) designed specifically for advanced functional testing of a device. The ability to modulate the output up to 100 kHz along with the capability to source and sink current (2-quadrant operation) makes the N6782A a perfect fit for advanced functional test of a variety of devices such as DC/DC converters, power management units, power amplifiers, and power management ICs. The input stage of the DUT can be stimulated by the fast sourcing and waveform capabilities. While the output stage can be loaded down and measured with the electronic load capabilities, providing a total test solution.

Model No

N6782A

Condition

New

Manufacturer

Keysight

Volts

20 V

Volts

20 W

Amps

3 A

Keysight Technologies N6782A Series Data Sheet
