6517B Keithley Resistance Meter New

6517B Keithley Resistance Meter New

$12,600
$12,600 $12,600
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty
Similar Used Units
Used unit product
6517B Keithley Resistance Meter Used
Request a Quote

Additional Features:

  • Measures resistances up to 1016Ω
  • 1fA-20mA current measurement range
  • <20μV burden voltage on lowest current ranges
  • 200TΩ input impedance
  • <3fA bias current
  • Up to 425 rdgs/s
  • 0.75fA p-p noise
  • Built-in ±1kV voltage source
  • Unique voltage reversal method for high resistance measurements
View full details
More Details
Specifications
Datasheets

Accessories Supplied:

  • 237-ALG-2 Low Noise Triax Cable, 3-slot Triax to Alligator Clips, 2m (6.6 ft)
  • 8607 Safety High Voltage Dual Test Leads
  • 6517-TP Thermocouple Bead Probe
  • CS-1305 Interlock Connector

Applications:

  • Polymer electrical characterization
  • Beam measurements
  • Dosimetry
  • Device leakage current measurements
  • Insulation resistance measurements
  • Optoelectronic detector characterization
  • Volume and surface resistivity
  • Nanomaterial characterization

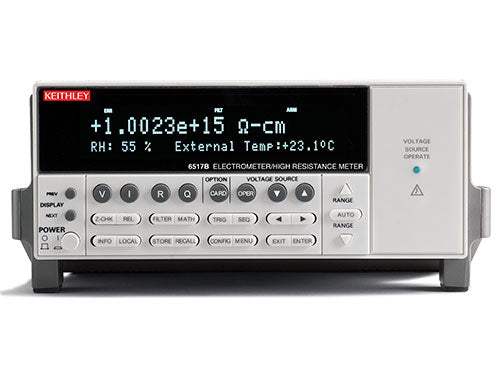

Keithley’s 5½ digit 6517B Electrometer/High Resistance Meter offers accuracy and sensitivity specifications unmatched by any other meter of this type. It also offers a variety of features that simplify measuring high resistances and the resistivity of insulating materials. With reading rates of up to 425 readings/second, the Keithley 6517B is also significantly faster than competitive electrometers, so it offers a quick, easy way to measure low-level currents.

Model No

6517B

Condition

New

Manufacturer

Keithley

Keithley_6517B
