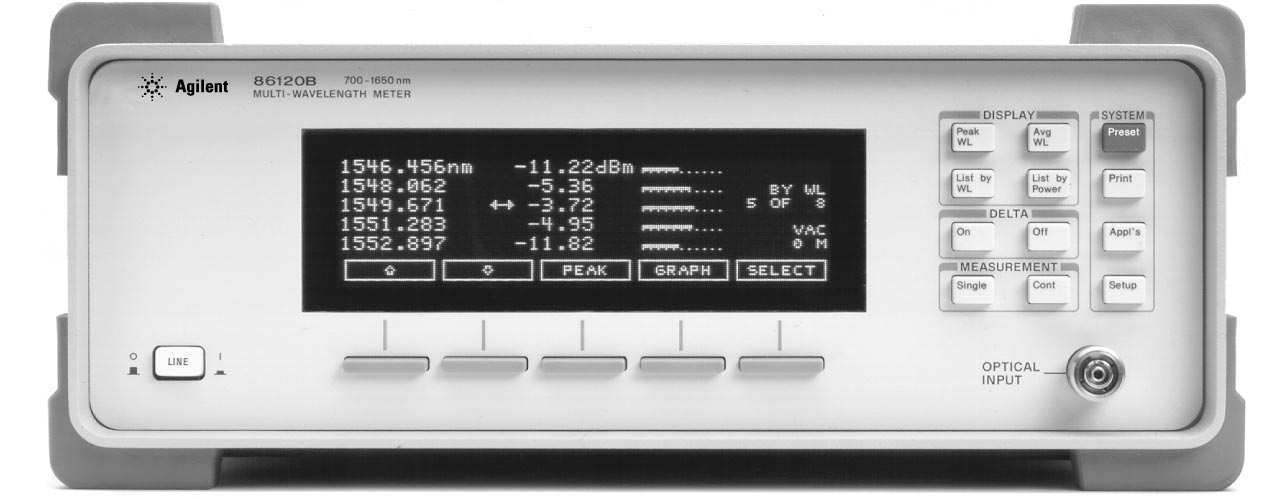

86120B Agilent Optical Meter Used

Shipping calculated at checkout.

Calibrations None NIST Traceable NIST Traceable With Full Data ISO IEC 17025 Accredited

Product variants

check availability

Request a Quote

Additional Features:

Rugged design to withstand strong shocks and vibration

Share on

View full details

More Details

Specifications

Datasheets

Manuals

Wavelength

Range: 700 to 1650 nm (182 to 428 THz)
Absolute accuracy: laser lines separated by >30 GHz ±3 ppm (±0.005 nm at 1550 nm, ±0.004 nm at 1310 nm)
Differential accuracy: ±2 ppm
Minimum resolvable separation (equal power lines input): 20 GHz (0.16 nm at 1550 nm, 0.11 nm at 1300 nm)
Display resolution: 0.001 nm, normal update mode; 0.01 nm, fast update mode

Power

Calibration accuracy: ±0.5 dB (at ±30 nm from 780, 1310, and 1550 nm)
Flatness: 30 nm from any wavelength; 1200 to 1600 nml ±0.2 dB; 700 to 1650 nml ±0.5 dB
Linearity: ±0.3 dB
Polarization dependence: 1200 to 1600 nm ±0.5 dB; 700 to 1650 nml ±1.0 dB
Display resolution: 0.01 dB

The Agilent 86120B Multi-Wavelength Meter is a Michelson interferometer-based instrument that measures wavelength and optical power of laser light in the 700 to 1650 nm wavelength range. Simultaneous measurements of multiple laser lines are performed allowing measurements of WDM (wavelength division multiplexed) signals and multiple lines of FabryPerot lasers. Each laser line is assumed to have a linewidth of less than 10 GHz.

Model No

86120B

Condition

Used

Manufacturer

Agilent

Agilent_HP_86120B

HP_86120B_Users_Guide
