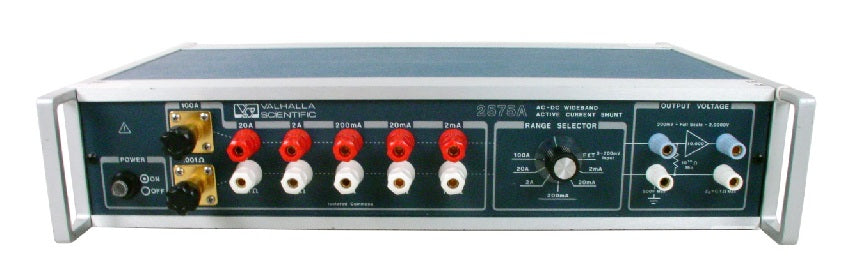

2575A Valhalla Scientific Current Shunt Used

2575A Valhalla Scientific Current Shunt Used

Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Amplitude Gain: 10.000
  • Gain Accuracy (relative to input): ± 0.01% of output ± 100µV at DC
  • Frequency Response: ± 0.05% of output to 10 kHz
  • Input Resistance: > 1010 Ω
  • Output Resistance: 0.1Ω max
  • Maximum Input Voltage (without damage): ± 300mV DC or ACpeak
  • Precision AC-DC Active Current Shunt
  • AC & DC Current Measurement to 100 Amps
  • Built-In Chopper Stabilizer Amplifier
  • Measurement tool for AC and DC
  • Working Calibration Standard
  • Calibration Traceable to NIST
  • Six Independent Switch Selectable Current Ranges
  • Fan-cooled Shunts for Thermal stability
  • Low Resistance Lab Standard Resistance Bank
Share on
View full details
More Details
Specifications
Manuals

The 2575A Precision AC-DC Active Current Shunt measures both AC/DC current and works as a standard for low-level resistance calibration requirements.

Model No

2575A

Condition

Used

Manufacturer

Valhalla Scientific

Valhalla Scientific 2575A Operation Manual
