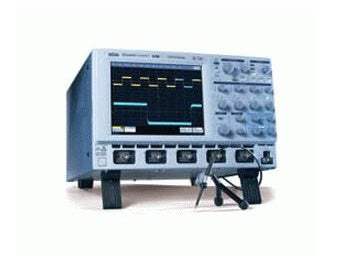

WAVERUNNER 6050A Teledyne LeCroy Digital Oscilloscope Used

Shipping calculated at checkout.

Calibrations None NIST Traceable NIST Traceable With Full Data ISO IEC 17025 Accredited

Product variants

check availability

Request a Quote

Additional Features:

Bandwidth: 500 MHz
4 Channels
Sample Rate: 5 GS/s
Record Length: 2 Mpts
All channels expandable to 12 Mpts
Up to 24 Mpts when interleaved
High sample rate captures high frequency transients and sharp edges
Very low residual jitter (2 ps typical)
Includes ultra-stable clock (±5 ppm)
Input Impedance: 1 MΩ; 20 pF (10 MΩ 9.5 pF using PP007 probe)
Input Coupling: 50 Ω: DC, 1MΩ: AC, DC, GND
Maximum Input Voltage: 50 Ω: 5 Vrms, 1 MΩ: 250 V max (Peak AC: ≤ 10 kHz + DC)
Channel to Channel Isolation: > 40 dB @ < 100 MHz (> 30 dB @ full bandwidth)
Vertical Resolution: 8 bits; up to 11 with enhanced resolution (ERES)
Sensitivity: 50 Ω: 2 mV/div – 1 V/div fully variable; 1 MΩ: 2 mV – 10 V/div fully variable
DC Accuracy: ±1.0% of full scale (typical); ±1.5% of full scale, ≥ 10 mV/div (warranted)

Share on

View full details

More Details

Specifications

Datasheets

Manuals

The WaveRunner 6000A is a true 4 channel instrument—you can sample at a full 5 GS/s on each channel. Other oscilloscopes can only use a single channel at 5 GS/s or 1/4 that rate when using all four channels. WaveRunner offers more than Nyquist sample rate on each channel.

The WaveRunner 6000A SMART Trigger provides the flexibility to quickly trigger and locate the specific signal characteristic or pattern you want. Trigger on abnormal signals at the touch of a button.

Exclusion/inclusion feature triggers on signals outside, or within, a specific range of pulse widths.
Selecting multiple threshold levels and pulse widths quickly catches the waveform for viewing and measuring.
Memory retains thousands of acquired events for viewing at your leisure.
Replay signal history, scan, and search from sweep to sweep.

Model No

WAVERUNNER

Condition

Used

Manufacturer

Teledyne LeCroy

Channels

Frequency

500 MHz

Record length

2 MPts

Sampling rate

5 GS/s

LeCroy WaveRunner 6000A Series

LeCroy Waverunner Operators Manual
