Features:

  • Function/Arbitrary Waveform Generator, 2 Ch, 8 Ch Digital, 150 MHz, 128 Mpts/Ch, 6 Vpp output, Wave Sequencing
  • 16-bit vertical resolution
  • Output voltage and spectral purity
  • Mixed signal generation
  • Waveform Memory 128 Mpts/Channel
  • Advanced Arbitrary Waveform Generator
  • Specialized for key applications
View full details
More Details
Specifications
Datasheets

Accessories:

  • T3AWG3-8DIG-TTL LVDS to LVTTL adapter (included with T3AWG2152-D)
  • T3AWG3-8DIG-SMA Mini-SAS HD to 16x SMA cable (8 LVDS outputs) (Accessories to be order separately for the T3AWG2152-D, not included)

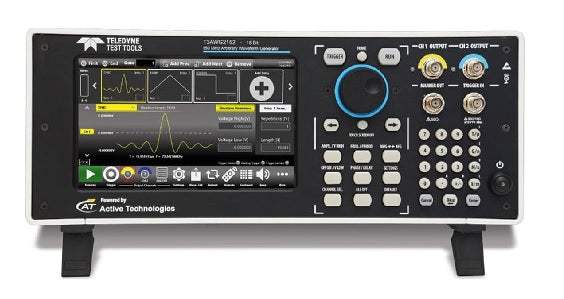

The T3AWG2K series consists of two affordable dual-channel arbitrary waveform generators, 16-bit vertical resolution, 6 Vpp output voltage (50Ω to 50Ω), 128 Mpts/ch memory, a maximum sampling rate of 600 MS/s and a maximum sine wave frequency of 150 MHz. The T3AWG2152-D mainframe adds 8 synchronized digital channels to the analog outputs, ideal for debugging and digital design validation.

Model No

T3AWG2152-D

Condition

New

Manufacturer

Teledyne LeCroy

Frequency

150 MHz

Teledyne LeCroy T3AWG2152 T3AWG2152-D
Teledyne LeCroy T3AWG2K-Series Fact Sheet
