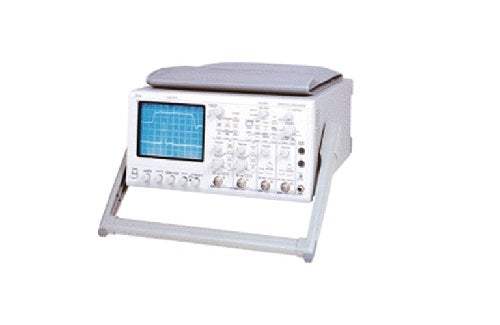

LA302 Teledyne LeCroy Analog Oscilloscope Used

LA302 Teledyne LeCroy Analog Oscilloscope Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 100 MHz
  • 2 + 1 Channels
  • Sensitivity of 2 mV/div max
  • Max Sweep Speed of 1 ns/div
  • High-Speed Auto Setup
  • Cursor Measurements
  • Full TV Trigger with Field & Line Selection
  • Save and Recall Panel Settings
  • Frequency Counter
  • Convenient Fine-Adjustment Mode
  • Line Triggering Provided for AC Line Measurement
  • Third-Channel Input
  • Input with Probe Sensor Function
  • High-Intensity CRT: 6-inch rectangular, internal graticule (8 x 10 div with scale illumination), meshless CRT
  • Accelerating Voltage: Nominal 16 kV
Share on
View full details
More Details
Specifications

Channel 1 & 2

  • Sensitivity: 2 mV/div - 5 V/div, 11 step (1-2-5); 2 mV/div - 12.5 V/div (with vernier)
  • Input Coupling: AC, DC, GND (The lowest usable frequency is 4 Hz with AC coupling.)

Channel 3

  • Sensitivity: 50 mV/div, 100 mV/div, 500 mV/div, ±2%
  • Input Coupling: AC, DC

Power Supply

  • Voltage Range: AC 90 V-132 V/180 V-250 V
  • Frequency Range: 48 Hz-440 Hz
  • Power Consumption: 110 VA max

The LA302 analog oscilloscope offers three channels and up to 100 MHz bandwidth. The LA302 has a highlevel performance and low cost. This is a perfect instrument for service and educational applications.

Equipped with extensive TV triggering, this scope is excellent for video testing.

Like the other LeCroy analog scopes, the standard multipurpose trigger, five-digit counter, and comprehensive cursors make them useful and universal Instruments.

Model No

LA302

Condition

Used

Manufacturer

Teledyne LeCroy

Channels

3

Frequency

100 MHz
