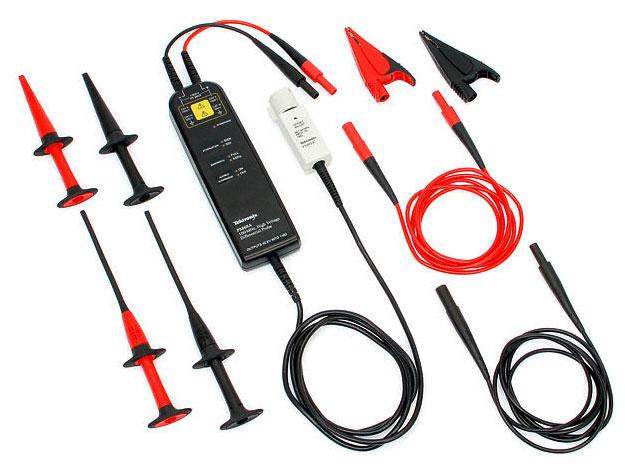

P5205A Tektronix Differential Probe New

P5205A Tektronix Differential Probe New

$2,430
$2,430 $0
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty
Similar Used Units
Used unit product
P5205A Tektronix Differential Probe Used
Request a Quote

Additional Features:

  • 1.3 kV Differential
  • 1 kV to Ground (Each Channel)
  • 50X / 500X Attenuation
  • Excellent Signal Fidelity
  • Easy Connection to ICs and Bus Bars
  • Safe for User and DUT
  • Power From TekProbe Interface
  • Overrange Indicator
  • Safety Certified
  • Switchable Attenuation
  • Switchable Bandwidth Limit
  • Includes: 2 hook clips, 2 alligator clips, 2 pincer clips, 2 extension cables
View full details
More Details
Specifications
Datasheets

Applications:

  • Floating measurements
  • Switching power supply design
  • Motor drive design
  • Electronic ballast design
  • CRT display design
  • Power converter design and service
  • Power device evaluation

The P5205A can be used with any oscilloscope and enables users to safely make measurements of floating circuits with their oscilloscope grounded. The P5205A Active Differential Probe converts floating signals to low-voltage ground-referenced signals that can be displayed safely and easily on any ground-referenced oscilloscope.

The P5205A probes are equipped with the Tektronix TekProbe® interface which communicates scale information to the oscilloscope. Direct connections can be made to oscilloscopes configured with the TekProbe® interface or to any oscilloscope when used with the 1103 TekProbe® Power Supply.

Model No

P5205A

Condition

New

Manufacturer

Tektronix

Frequency

100 MHz

Tektronix P5200A P5202A P5205A P5210A
