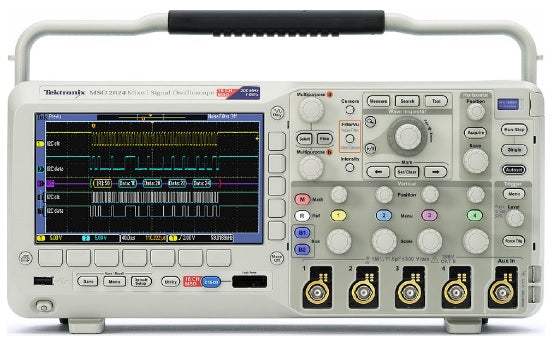

• MSO2004B Tektronix Mixed Signal Oscilloscope
1 1
New
Earn Loyalty with Rewards
Compare

MSO2004B Tektronix Mixed Signal Oscilloscope New

MSO2004B Tektronix Mixed Signal Oscilloscope New

$4,300
$4,300 $0
Shipping calculated at checkout.
Optional:
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty
Similar Used Units
Used unit product
MSO2004B Tektronix Mixed Signal Oscilloscope Used
Request a Quote

Additional Features:

  • Bandwidth: 70 MHz
  • 4 Channel
  • 16 Digital Channels
  • 1 GS/s Sample Rate on All Channels
  • 1 Megapoint Record Length on All Channels
  • 5,000 wfm/s Maximum Waveform Capture Rate
  • Suite of Advanced Triggers
  • Wave Inspector® Controls Provide Easy Navigation and Automated Search of Waveform Data
  • FilterVu™ Variable Low-pass Filter Allows for Removal of Unwanted Signal Noise while still Capturing High-frequency Events
  • 29 Automated Measurements, and FFT Analysis for Simplified Waveform Analysis
  • TekVPI® Probe Interface Supports Active, Differential, and Current Probes for Automatic Scaling and Units
  • 7 in. (180 mm) Widescreen TFT-LCD Color Display
  • Small Footprint and Lightweight – Only 5.3 in. (134 mm) deep
  • Five-year warranty
View full details
More Details
Specifications
Options
Datasheets
Manuals

Connectivity

  • USB 2.0 Host Port on the Front Panel for Quick and Easy Data Storage
  • USB 2.0 Device Port on Rear Panel for Easy Connection to a PC or Direct Printing to a PictBridge®-compatible Printer
  • Optional 10/100 Ethernet Port for Network Connection and Video Out Port to Export the Oscilloscope Display to a Monitor or Projector

Optional Serial Triggering and Analysis

  • Automated Serial Triggering, Decode, and Search Options for I2C, SPI, CAN, LIN, and RS-232/422/485/UART

Mixed Signal Design and Analysis (MSO Series)

  • Automated Triggering, Decode, and Search on Parallel Buses
  • Multichannel Setup and Hold Triggering

All Models Include:

  • TPP0100 100 MHz probe, Installation and Safety Manual and Translated Front-panel Overlay, Documentation CD, OpenChoice® Desktop Software, Calibration certificates document measurement traceability to National Metrology Institute(s) and ISO9001 Quality System Registration, Power Cord, and a five-year warranty.
  • MSO Models also Include: One P6316 16-channel logic probe and accessory kit, and accessory bag

With up to 20 channels for analyzing analog and digital signals, you can quickly find and diagnose problems in complex designs. To capture long windows of signal activity while maintaining fine timing resolution, the Tektronix MSO2004B offers a deep record length of 1 Mpoints standard on all channels.

With Wave Inspector® controls for rapid waveform navigation and automated serial and parallel bus analysis, the MSO2004B Oscilloscope from Tektronix provides the feature-rich tools you need to simplify and speed debug of your complex design.

Model No

MSO2004B

Condition

New

Manufacturer

Tektronix

Channels

4+16

Frequency

70 MHz

Record length

1 MPts

Sampling rate

1 GS/s

TekBench

TekBench is instrument control software for DPO/MSO2000B Oscilloscopes

Tektronix DPO2000B Series MSO2000B Series
Tektronix DPO2000B MSO2000B Series User Manual
Tektronix MSO2000B DPO2000B Instructions
Tektronix MSO2000B DPO2000B Technical Reference
Compare All Models
