SSM5342A Siglent Coax Switch New

SSM5342A Siglent Coax Switch New

$16,204
$16,204 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Select option

Features:

  • Frequency range: 100kHz - 26.5GHz
  • Number of input ports: 4
  • Number of output ports: 12
  • RF connector: 3.5mm female
  • Maximum input DC voltage: 35 V
  • Maximum input power: 20 dBm
  • Supports a simplified multi-port calibration algorithm
  • Interface: LAN, USB Device, Direct Control (in), Direct Control (out)
View full details
More Details
Specifications
Datasheets

The SSM5000A switch matrix series can expand the number of test ports of network analyzers, signal sources, spectrum analyzers, and other equipment. Depending on the model, up to 4 input ports, up to 24 output ports, and support for USB, LAN, and Direct Control communication modes are available. The Direct Control interface on the switch matrix can further expand the number of test ports and support a simplified multi-port calibration algorithm, which can greatly improve the efficiency of calibration.

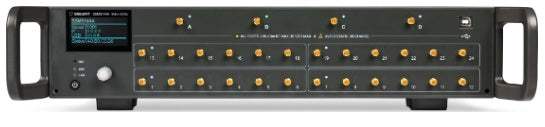

*The image is for reference only. Input and output ports and frequency will differ depending on the model.  See product specification for details.

Model No

SSM5342A

Condition

New

Manufacturer

Siglent

Siglent SSM5000A Datasheet EN02A
