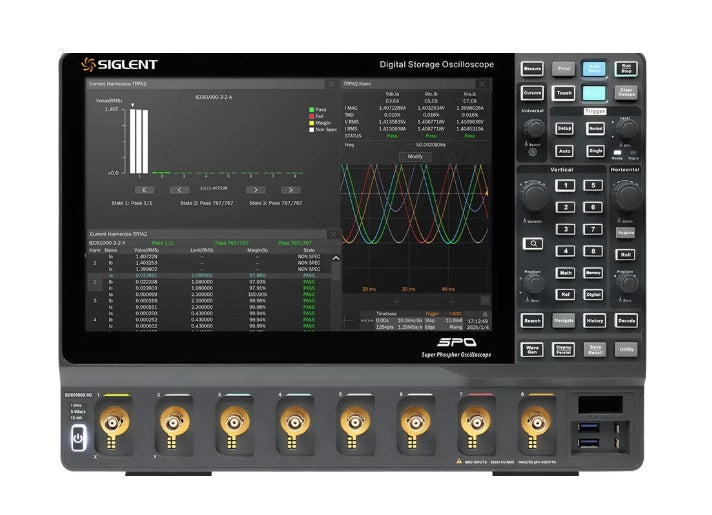

SDS5104X HD Siglent Digital Oscilloscope NEW

SDS5104X HD Siglent Digital Oscilloscope NEW

$12,680
$12,680 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 8/6/4 analog channels for SDS5000X HD
  • Up to 1 GHz bandwidth with up to 5 GSa/s sample rate
  • 12-bit ADC
  • Low noise floor: 140 μVrms @ 1 GHz bandwidth (typical)
  • SPO technology
    Waveform capture rates up to 160,000 wfm/s in normal mode and 650,000 wfm/s in sequence mode
    Supports 256-level intensity grading and color temperature display modes
    Up to 2.5 Gpts/ch waveform length
    Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
  • Serial bus triggering and decoder, supports protocols including I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 170,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 170,000 frames
  • Automatic measurements on 60+ parameters, supports statistics with histogram, track, trend, gating measurement, and measurements on Math, History and Memory traces
  • 8 Math traces (8 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
  • Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Double Pulse Test
  • High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels
  • External 50 MHz waveform generator supported
  • Large 12.1” TFT-LCD display with 1280 * 800 resolution; Capacitive touch screen supports multi-touch gestures
  • Interfaces include: 2x USB Host 3.0, USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN, HDMI, External Triger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In, 10 MHz Out
  • Built-in web server supports remote control over the LAN port using a web browser. Support SCPI remote control commands. Support external mouse and keyboard
View full details
More Details
Specifications
Datasheets
Manuals

Supports 8 channels with 12-bit resolution, ultra-low noise, and precision measurements for multi-channel applications. SDS5000X HD are available in 4, 6 and 8 channels, bandwidths of 350 MHz, 500 MHz and 1 GHz, 5 GSa/s sampling rate, maximum record length of 2.5 Gpts/ch. Siglent SPO technology enables 650,000 wfm/s capture rate with 256-level intensity grading. Digital trigger features high sensitivity, low jitter, and supports smart triggers, serial decoding. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, as well as serial decoding are also features of them. The SDS5000X HD employs a 12.1’capacitive touch screen and supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operational efficiency.

Model No

SDS5104X

Condition

New

Manufacturer

Siglent
