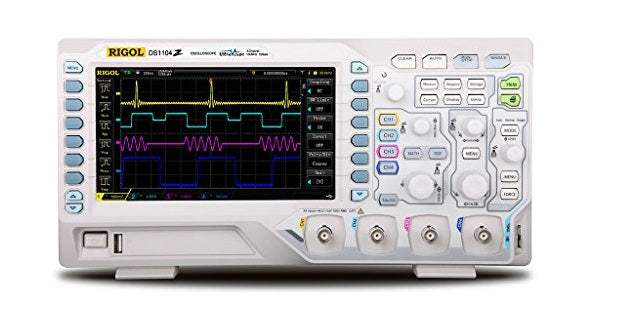

• DS1104Z Rigol Digital Oscilloscope
1 1
Used
Compare
lab tested

DS1104Z Rigol Digital Oscilloscope Used

DS1104Z Rigol Digital Oscilloscope Used

Calibrations
check availability
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 4 Channel
  • 100 MHz
  • 4 analog channels
  • Includes port for logic analyzer for the MSO Upgrade Kit. Future purchase of the MSO Upgrade Kit turns this into a MSO1104Z-S.
  • MSO field upgradable with MSO1000Z upgrade package
  • Real-time sample rate up to 1 GSa/s
  • Memory depth up to 12 Mpts (standard)/24 Mpts (optional)
  • Up to 30,000 wfms/s waveform capture rate
  • Up to 60,000 frames hardware real-time waveform recording and playback functions (optional)
  • Innovative "UltraVision" technology
  • Various trigger and bus decoding functions
  • Low noise floor, vertical scale range: 1 mV/div to 10 V/div
  • Built-in dual-channel 25 MHz function/arbitrary waveform generator (only for digital oscilloscope with source channels)
  • Various interfaces: USB Host&Device, LAN (LXI), AUX
  • Compact size, light weight, easy to use
  • 7 inch WVGA (800x480) TFT LCD, intensity graded color display
Share on
View full details
More Details
Specifications
Datasheets
Manuals

Specifications:

  • 100 MHz
  • 4 Channel
  • 1 GS/s
  • 12 MPts



The DS1104Z PLUS is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market.

Model No

DS1104Z

Condition

Used

Manufacturer

Rigol

Channels

4

Frequency

100 MHz

Record length

12 MPts

Sampling rate

1 GS/s
