Features:

  • Programmable AC Source 5000VA/0-310VAC/40-500Hz
  • Compact and high power density: 5000VA is 4U
  • AC source with DC output: extend the applications to DC testing
  • THD is only under 0.3 % when output power is under 100 Hz
  • Ideal for inrush current: capable to deliver up to 4.5 times of peak current
  • Start/End phase angle: users can define the start and end phase angle from 0° to 360°
  • Current foldback feature: have output current maintain constant based on the load which output voltage varies
  • STEP and RAMP function: ideal for voltage and frequency variation tests and effectively reduces the inrush current during motor startup
  • TRANSIENT generation provides users an easy setup for power line disturbance (PLD) simulation
  • Users can quickly set and view the parameters via 5 inches touch panel or rotary knob, which provides an easy operation and measurement display
  • Free control software and LabVIEW driver: allow users to easily program and remote
View full details
More Details
Specifications
Datasheets

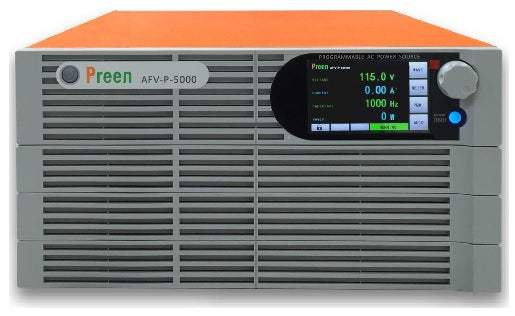

Preen's AFV-P Series is a programmable AC power source with DC output and precision measurements. This compact power source comes in four power levels, 600VA, 1250VA, 2500VA and 5000VA, providing clean power with distortion less than 0.3% at 50/60Hz. The AFV-P series can deliver output voltage from 0 to 310VAC and frequency from 40 to 500Hz (Opt. 15 to 1000Hz). It is ideal for commercial, defense and aerospace test applications from design verification, quality assurance, ATE to mass production.

Total 1200 test steps in 50 built-in memories and transient generation functions provide simulation of voltage variations, surges, drops and frequency disturbances. With the state-of-the-art PWM technology, the AFV-P series is capable delivering up to 4.5 times of peak current from its max. rated current that makes it ideal for inrush current test. Users can also set up starting and ending phase angle from 0 to 360 degrees.

The AFV-P series comprises measurement features of rms voltage, rms current, true power, apparent power, power factor, crest factor, reactive power and etc. Its 4.3" touch screen with rotary knob allows quick adjustments and configurations of voltage, current, and frequency. Users can also remotely control the AC source via standard interfaces of USB, RS232/RS485, LAN or optional GPIB and analog control. Free control software and LabVIEW driver are available for easy programming and remote control.

Model No

AFV-P-005

Condition

New

Manufacturer

Preen
