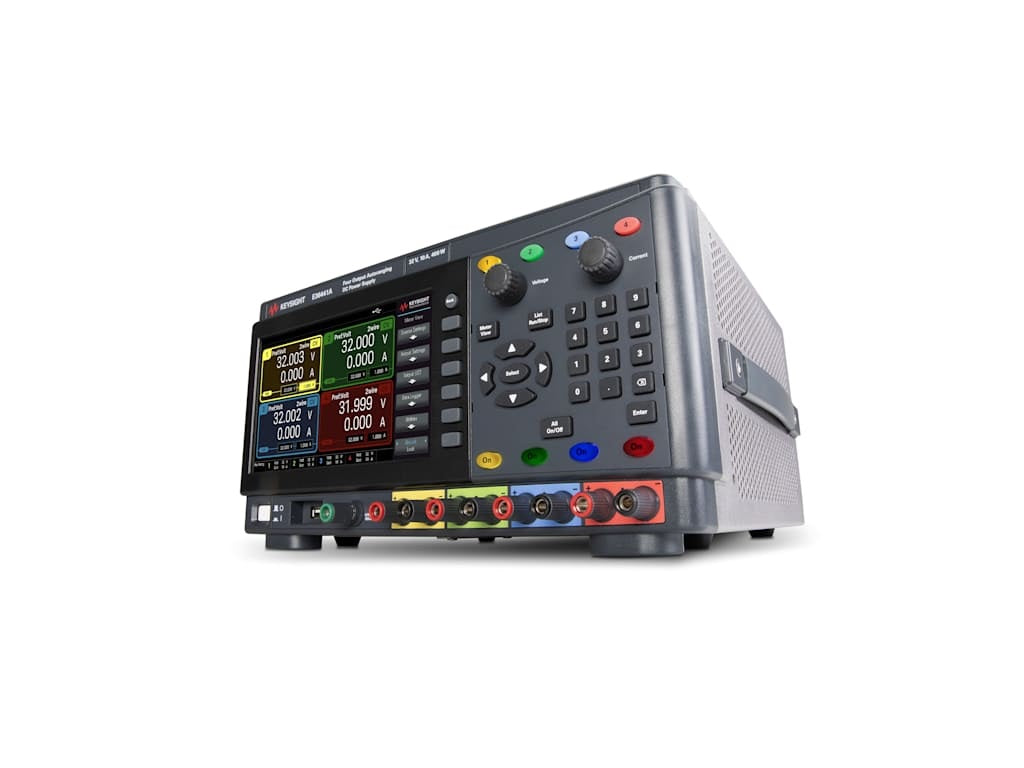

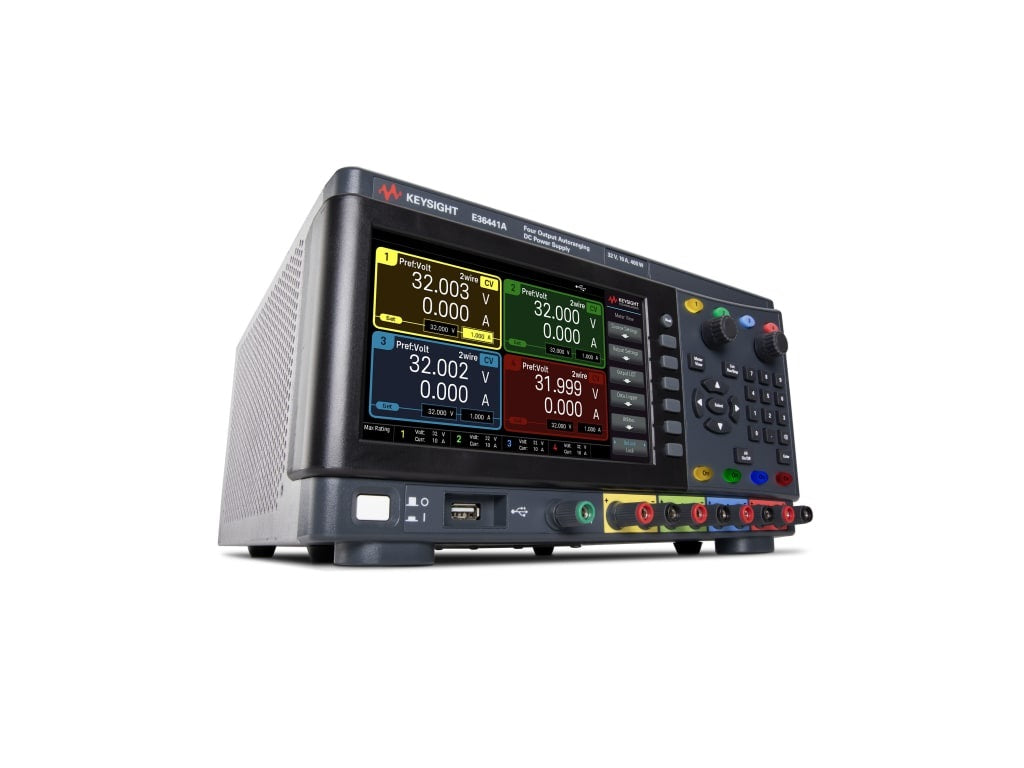

Keysight E36441A

  • 4-output DC power supply, 160W/32V/10A per channel, 400W total
  • 7” display, individual knob for voltage and current, color-coded channels
  • Low noise, precise programming/readback, fast transient response
  • Over voltage, current, and temperature protections
  • Output tracking: Synchronize all outputs to output 1
  • 400W 4-Output DC Power Supply, 4 x 160W at 32V/10A, LAN, USB
View full details
More Details
Specifications
Datasheets
Manuals

The E36441A is a 4-channel DC power rated at 400 watts total. It can output 160 watts, 32 volts, and 10 amps per channel. The outputs can be connected in series to increase maximum voltage to 128 volts or parallel to increase maximum current to 40 amps. The connection can be hand-wired or accomplished via a kit sold separately.

Over voltage, over current, and over temperature protections can be configured to protect the power supply and device under test. An adjustable slew rate allows you to ramp up the voltage at specified speed.

This power supply also features several productivity features. Output tracking permits synchronizing all outputs to output number one. You can program your outputs with a pre-defined sequence using LIST mode. The data logger feature can capture, store, and display measurements with a configurable sampling rate.

Protection for the DUT and the Power Supply

Protections can be configured to protect the power supply and device under test.

  • Over voltage protection (OVP)
  • Over current protection (OCP)
  • Over temperature protection (OTP)
  • Adjustable slew rate

BenchVue Control and Visualization

BenchVue software for the PC makes it simple to connect, control, and view Keysight power supplies simultaneously with other Keysight bench instruments without programming.

  • Visualize the output of multiple power supplies simultaneously
  • Log data, capture screenshots and save a system state
  • Recall a past state of your bench to replicate results
  • Export measurement data in desired format fast
  • Quickly access manuals, drivers, FAQs and videos
  • Monitor and control your bench from mobile devices

Productivity Features

Output tracking

  • Synchronize all outputs to output 1
  • Ideal for testing multiple DUTs

LIST mode

  • Program your outputs by creating a pre-defined sequence/list.

Data logger (Shown in image)

  • Continuously capture, store and display measurements with configurable sampling rate.

Model No

E36441A

Condition

New

Manufacturer

Keysight Technologies

Current

40 A

Voltage

128 V

Power

400 W
