Features:

  • 20 channels of analog input (w/automatic CJC) for generalpurpose measurements
  • 16 channels of digital output
  • 2 analog outputs (±12V, 5mA)
  • 300V, 1A capacity; 60W, 125VA maximum
  • Configurable as two independent banks of multiplexers
  • Relay closures stored in onboard memory
  • For use with Integra Series mainframes: 2700, 2701, 2750
Share on
View full details
More Details
Specifications
Datasheets
Manuals



Specifications:

  • 20 Channels: 20 channels of 2-pole relay input. All channels configurable to 4-pole.
  • Relay Type: Latching electromechanical
  • Actuation Time: <3ms
  • Firmware: Specified for Model 2700 rev. A02 or B01, 2701 rev. A01, and 2750 rev. A01 or higher
  • Operating Environment: Specified for 0° to 50°C. Specified to 80% R.H. at 35°C
  • Storage Environment: –25° to 65°C

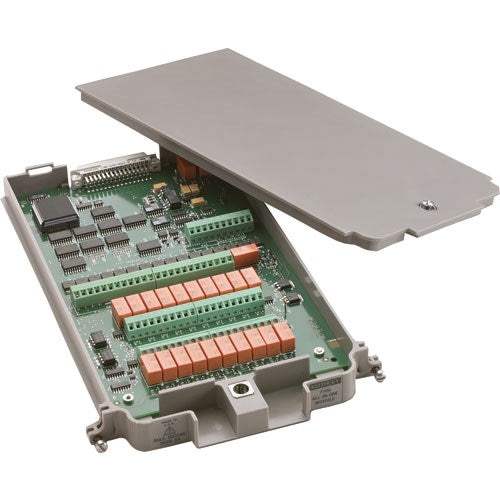

The Keithley 7706 plug-in module offers 20 channelsof 2-pole or 10 channels of 4-pole multiplexer switching with automatic CJC, as well as two analog output channels, 16 digital outputs,and one event counter/totalizer. The event counter/totalizer can be used to monitor and control system components, such as fixtures, limit switches, pass/fail indicators, external voltage sources, loads, door closures, revolutions, etc., while performing mixed signal measurements. The Keithley 7706 is ideal for RTD, thermistor, and thermocouple temperature applications.
