485-1-V12 Hakko Desoldering New

485-1-V12 Hakko Desoldering New

$6,031.47
$6,031.47 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 485-1-V12 Soldering System without 486 Air Control Unit
  • Compatible with LEAD-FREE solder
  • Solder flow is time-controlled and temperature-controlled
  • Soldering and desoldering cycles are automatic and precise
  • Built in locator light pinpoints the exact position for placing components
  • Large selection of nozzle sizes available
  • NOTE: Due to the increased use of LEAD-FREE and other solder compositions, the 485-1-V12 is shipped with an empty solder pot. Previously, customers would have to empty and clean the solder pot when using any solder other than the supplied Sn63 alloy. Shipping the 485 without solder will save time and effort for the end-user.
View full details
More Details
Specifications
Datasheets

Specifications:

  • Part Number: 485-1-V12, without 486 air blower
  • Power Consumption: 850W
  • Temperature Range: Room temperature - 299°C (570°F)
  • Solder: 10 kg (22 lb.)
  • Heating Element: 800W (400W x 2)
  • Air Pressure: 2 kg/cm² (4.4 lbs.) - 10 kg/cm² (22 lbs.)
  • Dimensions: 485 (Body), 500(W) x 245(H) x 550(D) mm, 19.7(W) x 9.6(H) x 21.7(D) in.
  • Weight: 485 (Body) 35 kg. (77 lbs.) without solder
  • NOTE: 485-1-V12 is shipped with an empty solder pot. Blower NOT included with 485-1-V12.

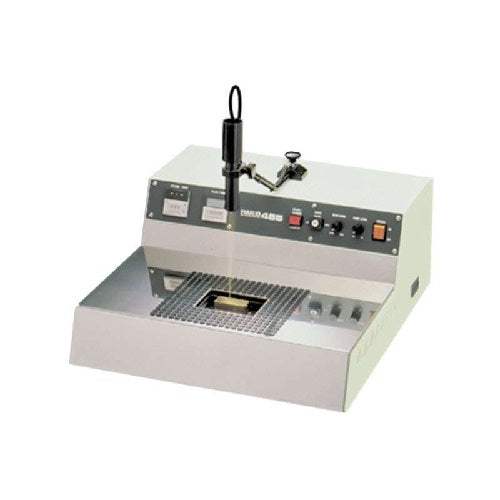

The Hakko 485-1-V12 Soldering System is exclusively designed for soldering and desoldering components and connectors on PC boards. The Hakko 486 Air Blower is the perfect companion to the station as it completely removes any remaining solder.

Model No

485-1-V12

Condition

New

Manufacturer

Weller

Power

850 W

Channels

1
