• ACD-3300 IND Amprobe Clamp Meter
1 1
New
Earn Loyalty with Rewards
Compare

ACD-3300 IND Amprobe Clamp Meter New

ACD-3300 IND Amprobe Clamp Meter New

$503.99
$503.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • TRMS Measurement
  • 180 degree rotating head for the perfect display viewing
  • Advanced VoltTect non-contact voltage detection
  • Slim jaw design with one hand operation
  • Measures AC Current up to 400 ACA, AC/DC, Voltage up to 600 V, Resistance and Capacitance
  • Temperature measurement
  • Audible continuity
  • Auto and manual ranging respectively for quick checks and precise measurements
  • Auto power off
  • Data hold
  • Accommodates conductors up to 1.18” (30 mm) in diameter
View full details
More Details
Specifications
Datasheets

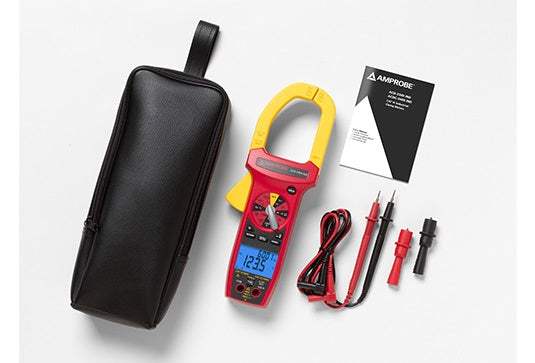

Accessories (Included)

  • ACD-3300 IND
  • Test leads
  • Type-K thermocouple
  • Battery (installed)
  • Carrying case

Specifications

  • DC Voltage: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V
  • AC Voltage: 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 750 V
  • AC Current: 66.00 A, 660.0 A, 1000 A
  • Resistance: 660.0 O, 6.600 kO, 66.00 kO, 660.0 kO, 6.600 MO, 66.00 MO
  • Capacitance: 6.600 nF, 66.00 nF, 660.0 nF, 6.600 µF, 66.00 µF, 660.0 µF, 6.6 mF
  • Frequency: 66.00 Hz, 660.0 Hz, 6.600 kHz, 66.00 kHz, 660.0 kHz, 1.000 MHz
  • Continuity: Yes
  • Temperature: -30 °F → 1832 °F (-35 °C → 1000 °C)
  • Accommodates conductors: up to 2.0″ (51 mm) in diameter

This CAT IV rated ACD-3300 IND Clamp On Tester is ideal for industrial applications and utilities that require an extra level of safety. Including True-rms sensing for accuracy, this clamp on meter’s extra large jaws can clamp on to those wide diameter wires making taking measurements in industrial environments simple.

Model No

ACD-3300

Condition

New

Manufacturer

Amprobe

Amps

1 kA

Volts

1 kV

Amprobe ACD-3300 IND Datasheet
Compare All Models
