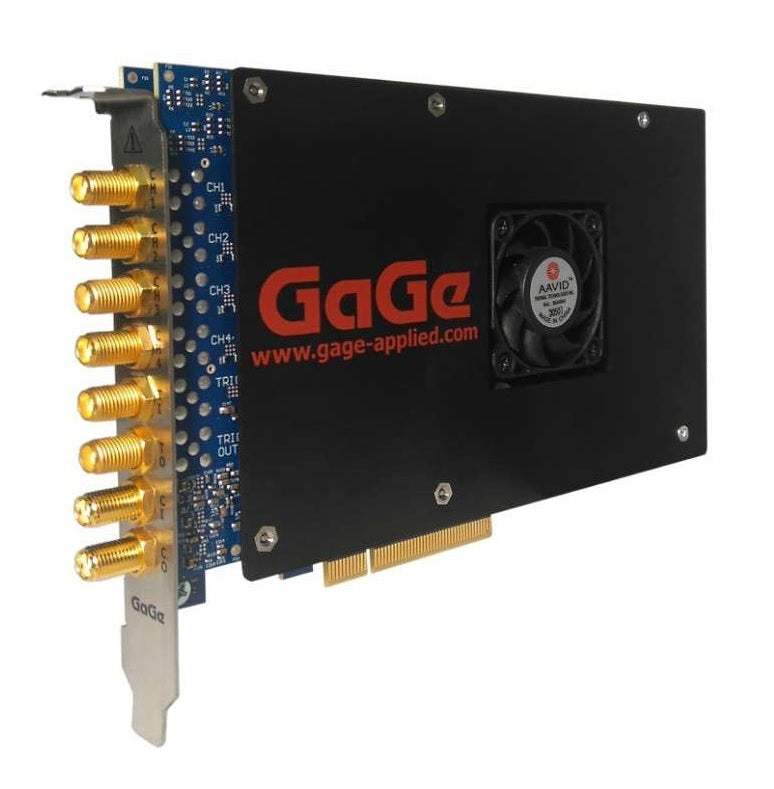

GAGE CSE161G2 Vitrek PXI New

GAGE CSE161G2 Vitrek PXI New

$10,840
$10,840 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 16-Bit Vertical A/D Resolution with 2 Digitizing Input Channels
  • 1 GS/s Maximum Sampling Rate per Channel
  • 31 Software Selectable A/D Sampling Rates from 1 kS/s to 1 GS/s
  • 700 MHz Bandwidth @ 1 GS/s is useful for RF based applications by enabling direct RF sampling of wider band signals
  • 4 GS (8 GB) Onboard Sample Memory Standard
  • FPGA Based Applications for Real-Time DSP Functions
  • Dual Port Memory with Sustained PCIe Gen3 Data Streaming to 6 GB/s
  • Full-Featured Front-End with DC Coupling (AC Optional) and 50 ohm Inputs
  • Ease of Integration with External or Reference Clock In & Clock Out
  • External Trigger In & Trigger Out with Advanced Triggering Operations
  • PCI Express (PCIe) Generation 3.0 x8 Interface Card
  • GaGeScope Software Lite Edition Included
  • Programming-Free Operation with GaGeScope PC Oscilloscope Software
  • Software Development Kits Available for C/C#, LabVIEW and MATLAB
  • Windows 10/8/7 and Linux Operating Systems Supported
View full details
More Details
Specifications
Datasheets

The CSE161G2 RazorMax Express CompuScope PCIe Gen3 digitizer features unprecedented speed and resolution with two 16-bit channels at 1 GS/s and 700 MHz bandwidth, with PCIe data streaming rates up to 6 GB/s.

The RazorMax Express can be combined with wideband downconverter models and PC solutions to be the heart of a wideband, multi-channel, RF/Microwave signal analysis and recording system.

Applications:

  • Wideband Signal Analysis
  • RADAR Design and Test
  • Signals Intelligence (SIGINT)
  • Ultrasonic Non-Destructive Testing
  • LIDAR Systems
  • Communications
  • Optical Coherence Tomography
  • Spectroscopy
  • High-Performance Imaging
  • Time of Flight
  • Life Sciences
  • Particle Physics

Model No

GAGE

Condition

New

Manufacturer

Cse161g2

GAGE PCIe Gen3 RazorMax Express
