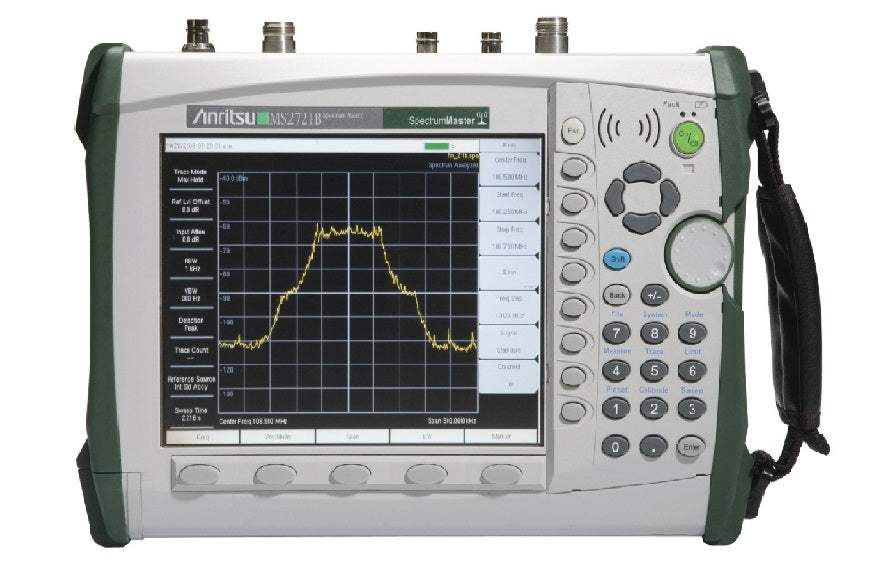

The Anritsu MS2721B is a high performance handheld Spectrum Master spectrum analyzer covering 9 kHz to 7.1 GHz. It is built to give the wireless professional the performance needed for demanding measurements in harsh RF and physical environments, combining a portable, battery-powered handheld form factor with a full spectrum analysis feature set.
Anritsu positions the Spectrum Master for spectrum monitoring, broadcast proofing, interference analysis, RF and microwave measurements, regulatory compliance, and Wi-Fi and wireless network measurements. Across these tasks it is intended to make fast and reliable measurements in the field.
ValueTronics stocks and holds its own inventory in a 20,000 square foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Pre-owned units are inspected and functionally verified in-house by our technicians before they ship, while new units ship factory-sealed exactly as received from the manufacturer.
| Specification | Value |
|---|---|
| Frequency | |
| Frequency Range | 9 kHz to 7.1 GHz (tunable to 0 Hz) |
| Tuning Resolution | 1 Hz |
| Frequency Reference Aging | ± 1.0 ppm/10 years |
| Frequency Reference Accuracy | ± 0.3 ppm (25 °C ± 25 °C) + aging |
| Frequency Span | 10 Hz to 7.1 GHz including zero span |
| Span Accuracy | Same as frequency reference accuracy |
| Sweep Time | 10 µs to 600 seconds in zero span, autoset in non-zero span |
| Sweep Time Accuracy | ± 2% in zero span |
| Bandwidth | |
| Resolution Bandwidth (RBW) | 1 Hz to 3 MHz in 1–3 sequence ±10% (1 MHz max in zero-span) (–3 dB bandwidth) |
| Video Bandwidth (VBW) | 1 Hz to 3 MHz in 1–3 sequence (–3 dB bandwidth) |
| RBW with Quasi-Peak Detection | 200 Hz, 9 kHz, 120 kHz (–6 dB bandwidth) |
| VBW with Quasi-Peak Detection | Auto VBW is On, RBW/VBW = 1 |
| Spectral Purity | |
| SSB Phase Noise @ 10, 20 and 30 kHz offset | –100 dBc/Hz |
| SSB Phase Noise @ 100 kHz offset | –102 dBc/Hz |
| Amplitude Ranges | |
| Dynamic Range at 600 MHz | > 95 dB, 2/3 (TOI-DANL) in 1 Hz RBW |
| Dynamic Range at 3.5 GHz | > 96 dB, 2/3 (TOI-DANL) in 1 Hz RBW |
| Measurement Range | DANL to +30 dBm |
| Display Range | 1 to 15 dB/div in 1 dB steps, ten divisions displayed |
| Reference Level Range | –120 dBm to +30 dBm |
| Attenuator Resolution | 0 to 65 dB, 5.0 dB steps |
| Amplitude Units (Log Scale) | dBm, dBV, dBmV, dBμV |
| Amplitude Units (Linear Scale) | nV, μV, mV, V, kV, nW, μW, mW, W, kW |
| Amplitude Accuracy (Power level > –50 dBm) | |
| 9 kHz to ≤10 MHz (Preamp Off, ≤35 / 40–55 / 60–65 dB atten) | ± 1.50 dB |
| 100 kHz to 4 GHz (Preamp On, 0 or 10 dB) | ± 1.50 dB |
| >10 MHz to 4 GHz (Preamp Off, ≤35 dB) | ± 1.25 dB |
| >10 MHz to 4 GHz (Preamp Off, 40–55 / 60–65 dB) | ± 1.75 dB |
| >4 GHz to 6.5 GHz (Preamp Off, 40–55 / 60–65 dB) | ± 1.75 dB |
| >4 GHz to 7.1 GHz (Preamp Off ≤35 dB, or Preamp On) | ± 1.75 dB |
| >6.5 GHz to 7.1 GHz (Preamp Off, 40–55 dB) | ± 2.00 dB |
| >6.5 GHz to 7.1 GHz (Preamp Off, 60–65 dB) | ± 3.00 dB |
| Displayed Average Noise Level (DANL) (1 Hz RBW, 0 dB attenuation, RMS Detection) | |
| 10 MHz to 1 GHz (Preamp Off) | –137 dBm maximum, –140 dBm typical |
| 10 MHz to 1 GHz (Preamp On) | –161 dBm maximum, –163 dBm typical |
| >1 GHz to 2.2 GHz (Preamp Off) | –133 dBm maximum, –136 dBm typical |
| >1 GHz to 2.2 GHz (Preamp On) | –159 dBm maximum, –160 dBm typical |
| >2.2 GHz to 2.8 GHz (Preamp Off) | –126 dBm maximum, –130 dBm typical |
| >2.2 GHz to 2.8 GHz (Preamp On) | –153 dBm maximum, –156 dBm typical |
| >2.8 GHz to 4 GHz (Preamp Off) | –136 dBm maximum, –139 dBm typical |
| >2.8 GHz to 4 GHz (Preamp On) | –159 dBm maximum, –160 dBm typical |
| >4 GHz to 7.1 GHz (Preamp Off) | –127 dBm maximum, –131 dBm typical |
| >4 GHz to 7.1 GHz (Preamp On) | –154 dBm maximum, –158 dBm typical |
| Spurs | |
| Residual Spurs (Preamp On, RF input terminated, 0 dB atten) | –100 dBm, 10 MHz to 7.1 GHz |
| Residual Spurs (Preamp Off, RF input terminated, 0 dB atten) | –90 dBm, 100 kHz to 3.2 GHz; –84 dBm, >3.2 GHz to 7.1 GHz |
| Input-Related Spurious (0 dB atten, –30 dBm input, span < 1.7 GHz, carrier offset > 4.5 MHz) | –60 dBc, –70 dBc typical |
| Third-Order Intercept (TOI) (–20 dBm tones 100 kHz apart, –20 dBm Ref level, 0 dB atten, Preamp Off) | |
| 600 MHz | +7 dBm |
| 3.5 GHz | +9.5 dBm |
| 50 MHz to 300 MHz | > +8 dBm typical |
| >300 MHz to 2.2 GHz | > +10 dBm typical |
| >2.2 GHz to 2.8 GHz | > +15 dBm typical |
| >2.8 GHz to 4 GHz | > +10 dBm typical |
| >4 GHz to 7.1 GHz | > +13 dBm typical |
| Second Harmonic Distortion (0 dB input attenuation, –30 dBm input, Preamp Off) | |
| 50 MHz to 1.4 GHz | –50 dBc |
| >1.4 GHz to 2 GHz | –70 dBc |
| >2 GHz | –80 dBc |
| VSWR | |
| > 10 dB input attenuation | 2.0:1 max, 1.5:1 typical |
| General Specifications | |
| Maximum Continuous Input (≥ 10 dB input attenuation) | +30 dBm |
| Input Damage Level (≥ 10 dB input attenuation) | > +43 dBm, ± 50 Vdc. Input protection relay opens at > 30 dBm |
| Input Damage Level (< 10 dB input attenuation) | > +23 dBm, ± 50 Vdc. Limited dV/dt. Input protection relay opens at approximately 10 to 23 dBm |
| ESD Damage Level (≥ 10 dB input attenuation) | > 10 kV |
| External Reference Frequencies | 1 MHz, 1.2288 MHz, 1.544 MHz, 2.048 MHz, 2.4576 MHz, 4.8 MHz, 4.9152 MHz, 5 MHz, 9.8304 MHz, 10 MHz, 13 MHz and 19.6608 MHz at –10 dBm to +10 dBm |
| Internal Trace/Setup Memory | > 13,000 traces |
| External Trace/Setup Memory | Limited by size of USB Flash drive or Compact Flash module |
| Connectors | |
| RF In | Type N, female, 50 Ω, Maximum Input +30 dBm, ± 50 VDC |
| GPS | BNC, female, reverse polarity |
| External Power | 5.5 mm barrel connector, 12 to 15 VDC, < 5.0 Amps |
| LAN Connection | RJ48C, 10/100 Mbps, Connect to PC or LAN for Remote Access |
| Compact Flash Interface | Type I |
| USB Interface (Type A) | Connect Flash Drive and Power Sensor |
| USB Interface (5-pin mini-B) | Connect to PC for data transfer |
| Headset | 2.5 mm miniature phone plug |
| External Trigger In | BNC, female, 50 Ω, Maximum Input ± 5 VDC |
| Display | |
| Size | 8.4” |
| Resolution | 800 x 600 |
| Battery | |
| Type | Li-Ion |
| Battery Operation | 2.5 hours, typical |
| Electromagnetic Compatibility | |
| European Union | CE Mark, EMC Directive 89/336/EEC, 92/31/EEC, 93/68/EEC and Low Voltage Directive 73/23/EEC, 93/68/EEC |
| Australia and New Zealand | C-tick N274 |
| Interference | EN 61326-1 |
| Emissions | EN 55011 |
| Immunity | EN 61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-11 |
| Safety | |
| Safety Class | EN 61010-1 Class 1 |
Important: Maximum continuous input is +30 dBm (≥10 dB input attenuation), ±50 VDC; the input damage level is greater than +43 dBm.
Important: High Accuracy Power Meter operation (Option 0019) requires an external USB Power Sensor, which is not included with the base unit and must be ordered separately (PSN50, MA24105A, MA24106A, MA24108A, MA24118A, or MA24126A — see the respective sensor datasheets for complete ordering information).
Important: Most signal-analyzer measurement and demodulation options require Option 0009 (I/Q Demodulation Hardware); the W-CDMA/HSDPA, cdmaOne/CDMA2000 1X, and CDMA2000 1xEV-DO Over-the-Air options additionally require Option 0031 (GPS Receiver).
Important: Recommended calibration cycle is 12 months.
