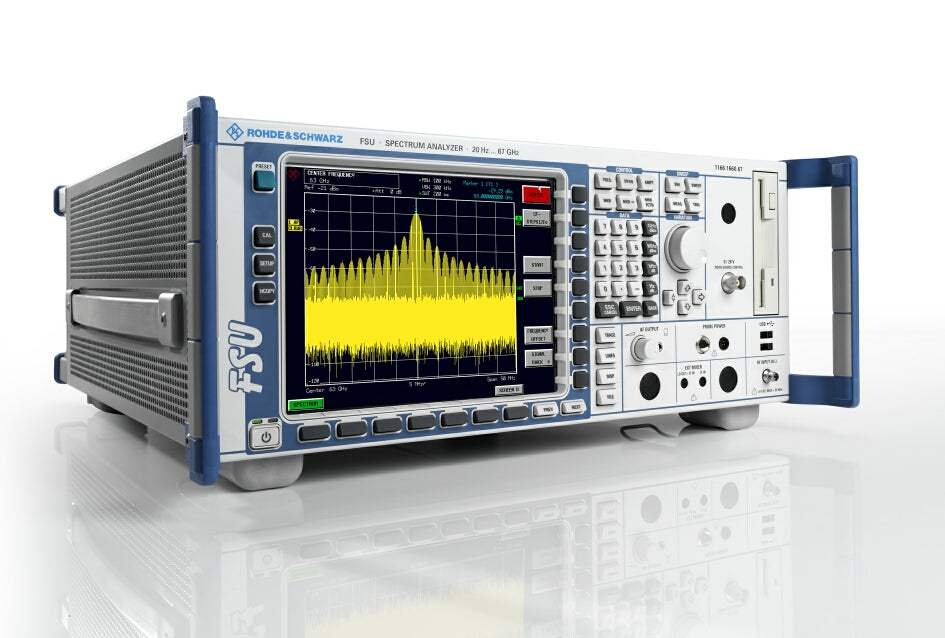

FSU67 Rohde & Schwarz Spectrum Analyzer Used

FSU67 Rohde & Schwarz Spectrum Analyzer Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • TOI > 20 dBm, typ.: +25 dBm
  • 1 dB compression: +13 dBm (0 dB RF attenuation)
  • Displayed average noise level: –152 dBm at 2 GHz; –148 dBm at 26 GHz (1 Hz bandwidth)
  • Typ. 77 dB ACLR for 3GPP, typ. 84 dB with noise correction
  • Phase noise: typ. –160 dBc (1 Hz) at 10 MHz carrier offset
  • Noise correction
  • Full choice of detectors
  • Versatile resolution filters
  • Full range of analysis functions
  • High dynamic range
  • Measuring frequency deviation after settling
  • Power measurement
  • Scalar network analysis with wide dynamic range
  • Direct frequency range up to 67 GHz
  • Easy expansion of the frequency range to 110 GHz with external mixers from Rohde & Schwarz
  • Support of external mixers up to 1 THz
  • Short test cycles, high throughput
  • Fast time domain power measurement
  • List mode: combined measurement of various parameters with a single command
  • Up to 70 measurements/s in zero span via IEC/IEEE bus, including trace data transfer
  • 859x/8566-compatible IEC/IEEE bus command set
  • High measurement speed
Share on
View full details
More Details
Specifications
Options
Datasheets

The Rohde & Schwarz FSU67 is a high-performance spectrum analyzer with outstanding performance in phase noise, dynamic range and measurement accuracy that meets any challenge in RF analysis – in aerospace and defense or for general microwave applications up to 67 GHz.

To handle the wide variety of measurement tasks in product development, an instrument must offer ample functionality and excellent performance in all areas of interest. Its wide dynamic range makes the R&S FSU67 an ideal tool for base station development and testing. That plus the excellent characteristics already incorporated in the standard model, e.g. < 0.3 dB total measurement uncertainty, gated sweep and IF power trigger.

Model No

FSU67

Condition

Used

Manufacturer

Rohde & Schwarz

Frequency

67 GHz

B10

EXTERNAL GENERATOR CONTROL

B25

Electronic Attenuator , 0 dB to 30 dB , and 20 dB Preamplifier (3.6 GHz)

B4

OCXO , low aging / improved phase noise at 10 Hz carrier offset

FS-K72

3GPP BTS/Node B FDD Application Firmware

Rohde_and_Schwarz_FSU8_FSU8_FSU26_FSU43_FSU46_FSU50_FSU67
