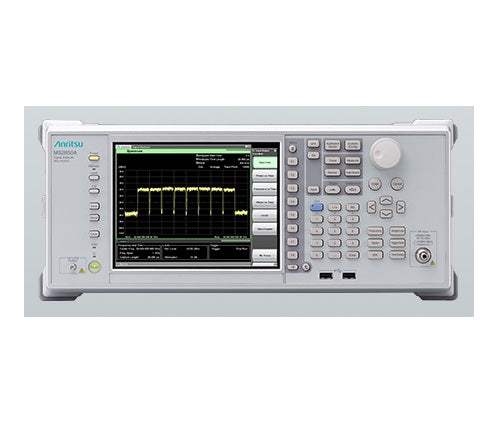

MS2850A Anritsu Signal Analyzer Used

Name: MS2850A Anritsu Signal Analyzer Used
Brand: Anritsu
SKU: anrits_ms2850a
Availability: OutOfStock

Product variants

check availability

Request a Quote

Features:

Built-in 5G measurement software supports efficient development and production
All-in-one 5G NR/V5G (sub-6 GHz/mmWave) coverage
High EVM performance due to wide dynamic range (EVM: <1%)
One-button dynamic-range optimization at EVM measurement
Multicarrier batch (all-at-once) analysis
Amplitude/phase/timing difference measurement for each carrier
Maximum analysis bandwidth: 1 GHz
Excellent amplitude and phase flatness performance
Wide dynamic range measurement: >140 dB
Long-term capture using large memory
With PCIe/USB3.0 connector equipped
Transfers captured data to external PC at faster speed than 1000BASE-T

Share on

View full details

More Details

Specifications

Datasheets

Specifications:

44 GHz

The Signal Analyzer MS2850A is a spectrum analyzer/signal analyzer with a maximum analysis bandwidth of 1 GHz and a frequency range of 9 kHz to either 32 GHz or 44.5 GHz. It has an analysis bandwidth supporting wideband communications measurements, such as 5G mobile communications and broadcast satellite equipment, providing all-in-one coverage from the sub-6 GHz to millimeter-wave 28 GHz/39 GHz bands. With excellent cost- performance, this benchtop signal analyzer helps cut development and production costs for communications equipment while improving efficiency.

Model No

MS2850A

Condition

Used

Manufacturer

Anritsu

Frequency

44 GHz

Anritsu MS2850A
