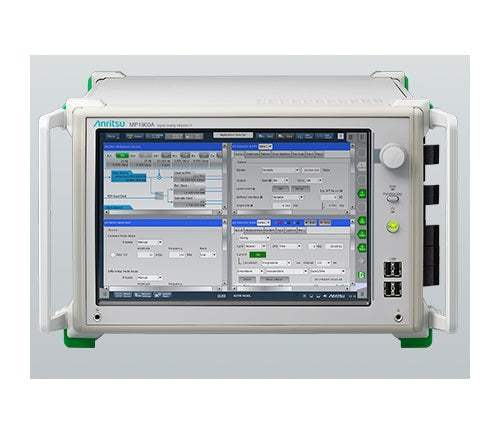

MP1900A Anritsu Signal Analyzer Used

MP1900A Anritsu Signal Analyzer Used

check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 512 Gbit/s max. transmission capacity
  • PAM4 PPG/ED (MU196020A/MU196040A)
  • Baud rate of 2.4 to 64.2 Gbaud*1
  • Multichannel Scalability 4ch PAM4/NRZ  NEW
  • High-speed Tr/Tf of 8.5 ps (20 to 80%)
  • Low Intrinsic Jitter output of random Jitter 170 fs rms (typ.)
  • Low noise and low distortion high-quality data output
  • 4Tap Emphasis (20-dB Range)
  • ISI adjustment function  NEW
  • FEC pattern generation  NEW
  • Stressed margin BER < E-12*2
  • Built-in Clock Recovery
  • PAM4 pattern editor and symbol error measurement
  • Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC)
  • Voltage Noise Addition function (Common/Differential/White Noise)
  • Jitter Tolerance measurement using DUT BER counter function  NEW
Share on
View full details
More Details
Specifications
Datasheets

Specifications:

  • LCD: 12.1-inch, WXGA 1280 x 800
  • Remote Interface: GPIB, LAN
  • Module Slots: 8
  • External Peripheral I/F: USB x6, VGA x1, HDMI x1
  • OS: Windows Embedded Standard 7
  • Power: 100V(ac) to 120V(ac)/200V(ac) to 240 V(ac)
  • 50 Hz to 60 Hz
  • Power Consumption: 1350 VA max.
  • Dimensions/Mass: 340 (W) x 222.5 (H) x 451 (D) mm/20 kg max. (excluding modules)

To cope with increasing data traffic caused by the widespread popularity of smartphones and mobile terminals, data-center network interfaces are being transitioned to the faster 200 GbE /400 GbE /800 GbE standards, while communications-equipment interconnects are adopting PCI Express Gen5 supporting faster speeds of 32 Gbit/s; multi-channel technologies are also being deployed.

Model No

MP1900A

Condition

Used

Manufacturer

Anritsu

Frequency

10 GHz
