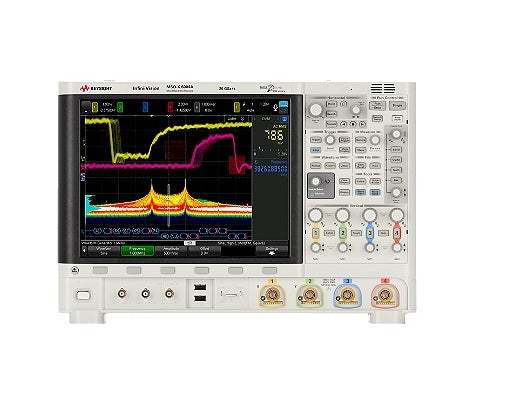

MSOX6004A Agilent Mixed Signal Oscilloscope Used

MSOX6004A Agilent Mixed Signal Oscilloscope Used

Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 1– 6 GHz
  • 4 analog plus 16 digital channels
  • Easily view and isolate signals on the 12.1-in capacitive multi-touch screen with Zone triggering and 450,000 wfms/s update rate
  • Make more precise measurements with 115 Vrms noise floor at 1 mV/div (1 GHz)
  • Get performance measurements anywhere with the portable 6-in deep size
  • Quickly see analysis details with standard histogram and color grade
  • View signal integrity with jitter and eye diagram analysis options
  • Expand capabilities with full upgradability
Share on
View full details
More Details
Specifications
Datasheets

Specifications:

  • 6 GHz
  • 4+16 Channel
  • 20 GS/s
  • 4 MPts

The MSOX6004A is a 6 GHz, 4+16 Channel, 20 GS/s, 4 MPts mixed signal oscilloscope from Agilent Keysight HP.

Unit comes with these options:

  • MSO: Mixed Signal Oscilloscope (Digital channels)
  • FPGAX:
  • MEMUP:
  • EMB: Embedded serial decode and trigger
  • AUTO: Automotive serial decode and trigger
  • FLEX: Flex Ray serial decode and trigger
  • FRA: Frequency Response Analysis
  • PWR: Power application
  • COMP: UART/RS232 serial decode and trigger
  • SGM:
  • MAS: Mask limit testing
  • BW400: 4GHz bandwidth with 16 channels digital
  • AUDIO: Audio serial decode and trigger
  • EDK:
  • WAVEGEN: Wave Generator
  • AERO: 1553 & 429 serial decode and trigger
  • VID: Enhanced Video Triggering
  • ADVMATH:
  • DVMCTR:
  • USBFL: USB low/full speed serial decode and trigger
  • USBH: USB high speed serial decode and trigger
  • USBSQ: USB 2.0 Signal Quality Analysis
  • RML:
  • CANFD: CAN FD serial and decode
  • JITTER: Jitter
  • One N2894A 700-MHz passive probe (10:1 attenuation) per channel
  • One N2756A 16-digital-channel MSO cable
  • Localized interface front panel overlay and built-in help system in help English, Chinese (simplified and traditional), French, German, Italian, Japanese, Korean, Portuguese, Russian, and Spanish
  • Voice control support in English, Chinese Simplified, Chinese Traditional, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish (Latin America) and Spanish (Castilian)
  • Localized power cord
  • Front-panel cover

Model No

MSOX6004A

Condition

Used

Manufacturer

Agilent

Channels

4+16

Frequency

6 GHz

Record length

4 MPts

Sampling rate

20 GS/s

Keysight InfiniiVision 6000 X-Series DataSheet
