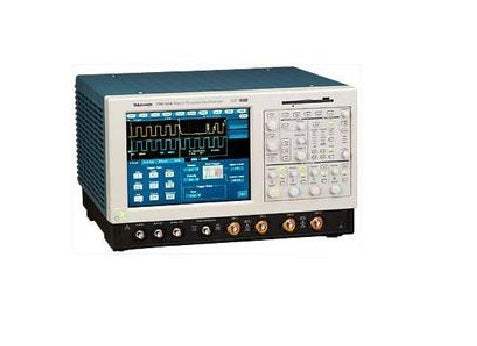

TDS7154 Tektronix Digital Oscilloscope Used

TDS7154 Tektronix Digital Oscilloscope Used

Calibrations
Check Pricing
Request a Quote

Request a Quote To Get A EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Bandwidth: 1.5 GHz
  • 4 Channels
  • Sample Rate: 20 GS/s
  • Record Length: 400 kpts
  • >400,000 wfms/second maximum waveform capture rate
  • Jitter measurements to 1 psRMS
  • 10 MHz Timebase Reference Input for Enhanced Accuracy and Repeatability
  • Graphical User Interface
  • Control via Classic Direct Controls, Touch-sensitive Color Display or Mouse Navigation
  • Open Microsoft Windows Environment
  • Built-in Networking
Share on
View full details
More Details
Specifications
Options
Datasheets
Manuals

Applications:

  • Signal Integrity, Jitter and Timing Analysis
  • Verification, Debug and Characterization of Sophisticated Designs
  • Design Development and Compliance Testing of Serial Data Streams Up to 2.5 Gbps Rates for Telecom and Datacom Industry Standards
  • Debugging Telecom, Datacom and Storage Area Network Equipment Designs and High Speed Backplanes
  • Spectral Analysis
  • Disk Drive Analysis
  • Investigation of Transient Phenomena

The TDS7154 oscilloscopes are high performance solutions for verification, debug, and characterization of sophisticated electronic designs. Classic analog-style controls, a large touch-sensitive display and graphical menus provide intuitive control. Open access to the MS Windows operating system enables unprecedented customization and extensibility.

Superior Performance

TDS7000 models range from 500 MHz to 4 GHz bandwidth with single-shot sample rates to 20 GS/s, meeting demands of the latest high speed logic families and multi-Gigabit communication standards. Acquisition memory options from 2 to 32 Megasamples maximize the value of high sample rate and ensure that critical events are captured with fine detail.

High performance jitter analysis to 1 psRMS is achieved through exceptional trigger and acquisition performance, deep memory and applied software.

TDS7000 Series high bandwidth signal access solutions include the P7240 4 GHz (120 ps rise time) active probe and the P7330 3 GHz (< 130 ps rise time, typical, < 140 ps guaranteed) differential probe. Small form- factors and a wide array of tip accessories ensure effectiveness. In addition, the TDS7404 includes the TekConnect™ signal interconnect system. This interface replaces traditional BNC input connectors with a convenient positivelocking interface suitable for higher system bandwidths. P7000 Series probes are directly compatible with TekConnect signal interconnect system along with adapters that provide SMA, BNC and N connections.

The image is a representation of selection. See specifications for product details.

Model No

TDS7154

Condition

Used

Manufacturer

Tektronix

Channels

4

Frequency

1.5 GHz

Record length

400 kPts

Sampling rate

20 GS/s

1M

2 Msamples max , 500 ksamples/ch

2M

8 Msamples max , 2 Msamples/ch

3M

16 Msamples max , 4 Msamples/ch

4M

32 Msamples max , 8 Msamples/ch

J1

Jitter Analysis Software

J2

Disk Drive Analysis Software

J3E

TDSJIT3 v2.0 Essentials jitter analysis software (Replaces J3E)

JE3

Jitter Analysis - Essentials

JT3

TDSJIT3 Advanced Jitter Analysis application with random anTDSJIT3 Advanced Jitter Analysis application with random and deterministic jitter analysisd deterministic jitter analysis

USB

TDSUSBS-USB2.0 Compliance Test S/W Only
