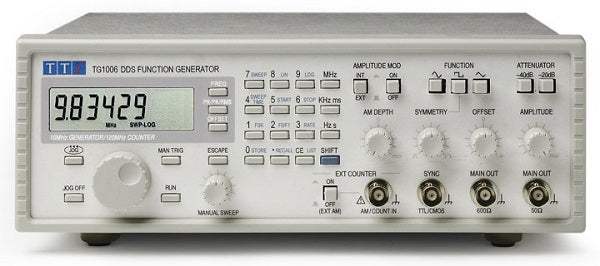

The Aim-TTi TG1006 is a 10 MHz DDS function generator that combines waveform generation with sweep, modulation, and a 120 MHz frequency counter in a single 2U bench instrument. It was developed from the TG300 and TG550 series of analog function generators, but uses direct digital synthesis (DDS) frequency generation to provide greater accuracy and stability and to cover a wider frequency range. DDS generates waveforms digitally using a phase accumulator, a look-up table, and a DAC, so the accuracy and stability of the output are tied to that of the crystal master clock.
A function generator produces known, controllable test signals used to stimulate a device under test so that its response can be measured. On the TG1006, the manual sweep mode uses a dedicated analog control to sweep the frequency over any defined span, which is suited to setting up frequency-dependent parameters such as checking filter characteristics. The non-volatile frequency-list storage holds commonly used values that can be recalled directly or stepped through in sequence as required in a repetitive test routine.
ValueTronics stocks and holds its own inventory in a 20,000 square foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois.
This instrument is built by Thurlby Thandar Instruments Ltd. (TTi), one of Europe's manufacturers of test and measurement instruments. Products have historically been sold under two brand names, TTi and Aim, and the full product range is transitioning to a single Aim-TTi brand. The changeover is gradual, so many products continue to carry the TTi or Aim brands.
| Specification | Value |
|---|---|
| Waveforms — Sine | |
| Range | 1mHz to 10MHz |
| Resolution | 1mHz or 6 digits |
| Accuracy | 10 ppm for 1 year; ± 1mHz below 0.2Hz |
| Temperature Stability | Typically <1 ppm/ºC outside 18° to 28°C |
| Output Level | 1mV to 10Vp-p into 50Ω |
| Harmonic Distortion | <0.3% THD to 20kHz (typically 0.1%), <–45dBc to 300kHz, <-30dBc to 10MHz (typically <-35dBc) |
| Non-harmonic Spurii | <–55dBc to 1MHz, <–55dBc + 6dB/octave 1MHz to 10MHz |
| Waveforms — Square | |
| Range | 1mHz to 10MHz |
| Resolution | 1mHz or 6 digits |
| Symmetry Control | 20% to 80% 1mHz to 10MHz |
| Accuracy | 10 ppm for 1 year; ± 1mHz below 0.2Hz |
| Output Level | 1mV to 10Vp-p into 50Ω |
| Rise and Fall Times | <25ns |
| Aberrations | <5% + 2mV |
| Waveforms — Triangle | |
| Range | 1mHz to 1 MHz |
| Resolution | 1mHz or 6 digits |
| Accuracy | 10 ppm for 1 year; ± 1mHz below 0.2Hz |
| Output Level | 1mV to 10Vp-p into 50Ω |
| Linearity Error | <0.5% to 100 kHz |
| Operating Modes — Continuous | |
| Continuous | Continuous cycles of the selected waveform are output at the programmed frequency. |
| Operating Modes — Sweep | |
| Carrier Waveforms | All |
| Sweep Mode | Manual, linear or logarithmic, single or continuous. |
| Sweep Width | From 0.1Hz to 10MHz in one range. Phase continuous. Independent setting of the start and stop frequency. |
| Sweep Time | 100ms to 999s (10ms resolution). |
| Sweep SYNC | Start of sweep trigger available from SYNC output. |
| Trigger Source | The sweep may be free run or triggered from the front panel MAN TRIG key. |
| Manual Sweep Mode | An analogue control can be used to set any frequency between the sweep start and sweep stop frequencies. |
| Operating Modes — Amplitude Modulation | |
| Carrier Frequency | From 1mHz to 10MHz. |
| Carrier Waveforms | All |
| Modulation Frequency | 400Hz internal. DC to 20kHz external |
| External Modulation | AM/COUNT IN socket |
| Operating Modes — Frequency Shift Keying (FSK) | |
| Description | Phase coherent switching between two selected frequencies at a rate defined by the switching signal source. |
| Carrier Frequency | From 0.1Hz to 10MHz. |
| Carrier Waveforms | All |
| Switch Repetition Rate | DC to 10kHz (internal trigger). |
| Switching Signal Source | Manual (front panel MAN TRIG key) or internal trigger generator |
| Operating Modes — Frequency List | |
| Carrier Waveforms | All |
| Frequency List | Up to 10 frequencies from 1mHz to 10MHz |
| Switching Source | Manual from front panel MAN TRIG key |
| Outputs — Main Outputs | |
| Output Impedance | 50Ω and 600Ω (not independent) |
| Amplitude | 2mV to 20V pk-pk open circuit, (1mV to 10V pk-pk into 50Ω/600Ω) in four switch selectable ranges with 20dB vernier control within each range. (Amplitude can be displayed in pk-pk or r.m.s.) |
| Attenuator | 0, -20dB, -40dB, or -60dB. |
| Amplitude Flatness | ±0.2dB to 500kHz; ±2dB to 10MHz. |
| DC Offset Range | ±10V. DC offset plus signal peak limited to ±10V from 50Ω/600Ω; CLIP shows in display when offset plus signal peak exceeds ±10V. DC offset plus waveform attenuated proportionally by the attenuator. |
| Resolution | 3 digits for both Amplitude and DC Offset. |
| Outputs — SYNC Out | |
| Waveform Sync | A square wave at the main waveform frequency. Symmetry is 50% for sine and triangle waves at MAIN OUT; for square waves symmetry is the same as that of the waveform at MAIN OUT. |
| Sweep Sync | Outputs a trigger signal at the start of sweep to synchronize an oscilloscope. |
| Output Signal Level | Output impedance 50Ω nominal. Logic levels of <0.8V & >3V. |
| Inputs — AM In | |
| Input Impedance | 40kΩ |
| Input Sensitivity | Approximately 2V peak-peak for 100% modulation. |
| Max. Allowable Input | ±10V |
| Inputs — Count In | |
| Input Impedance | 1MΩ/20pF |
| Input Sensitivity | 50mVrms (sinewave) |
| Max. Allowable Input | 30Vdc/30Vrms to 50Hz/60Hz with respect to ground, reducing to 1Vrms above 1MHz. |
| Display Functions — Internal Measurement Accuracy | |
| Amplitude | Display shows peak-to-peak amplitude or rms value. Display corrected for attenuator setting. 3-digit resolution, accuracy typically ±5% of full scale. |
| DC Offset | 3-digit resolution; accuracy typically ±2% setting ±1 digit. Display corrected for attenuator setting. |
| Frequency Setting | Resolution up to 6 digits, see Waveforms section for setting accuracy. |
| External Frequency Measurement | |
| Frequency Range | 3Hz to >120MHz. |
| Resolution | Up to 7 digits |
| Input Sensitivity | better than 50mVrms (sinewave). |
| Measurement Time | Automatic. |
| Accuracy | ±1 digit ± timebase accuracy. |
| Timebase Accuracy | ±5ppm initial error; ± 5 ppm/year ageing rate; typically < 0.1ppm/°C. |
| General Specifications | |
| AC Input | 110-120V AC or 220V-240V AC ±10%, 50/60Hz, 35VA max. Installation Category II. |
| Operating Range | +5ºC to +40ºC, 20% to 80% RH |
| Storage Range | -20ºC to +60ºC |
| Environmental | Indoor use at altitudes up to 2000m, Pollution Degree 2. |
| Safety | Complies with EN61010-1 |
| EMC | Complies with EN61326 |
| Display | LCD, 8 digits plus annunciators |
| Data Entry | Frequency entry by numeric keys or by rotary control. |
| Stored Settings | Up to 10 output frequencies may be stored and recalled from non-volatile memory. All frequencies settings including list, FSK and sweep parameters are stored at power down and restored at switch-on. |
| Size | 260mm (W) x 88mm (H) x 235mm (D). |
| Weight | 1.45kg. (3.2lb.). |
Important: Maximum allowable input on the AM/COUNT IN socket: 30 V DC / 30 V rms to 50/60 Hz with respect to ground, reducing to 1 V rms above 1 MHz.
This is a brand-new, factory-sealed unit, supplied exactly as it arrives from the manufacturer and backed by the full manufacturer warranty. For the exact configuration, available options, included accessories, or current lead time for your application, our Test Architects can confirm the details before you order.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
