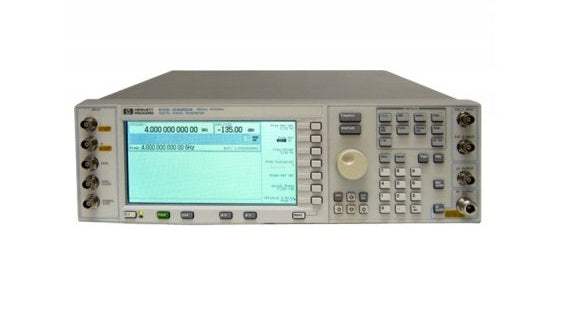

The Agilent E4430A — also designated the ESG-D1000A — is a digital RF signal generator that delivers a synthesized carrier from 250 kHz to 1000 MHz. It combines a frequency synthesizer, a calibrated output attenuator, and built-in analog and vector (I/Q) modulation, making it a single-box source for generating both unmodulated CW signals and complex digitally modulated waveforms.
With the optional internal I/Q baseband generator installed, the E4430A generates framed, digitally modulated signals conforming to the DECT, GSM (including DCS1800 and PCS1900), NADC, PDC, PHS, and TETRA standards. Frames and timeslots can be configured as different traffic or control channel types, and the data field of a timeslot accepts a user file, a PRBS pattern (PN9 or PN15), or external serial data supplied with the appropriate clock.
ValueTronics stocks and holds its own test and measurement inventory in a 20,000 square-foot secure warehouse at 1675 Cambridge Drive in Elgin, Illinois. Every pre-owned instrument is inspected and functionally verified in-house before it ships, while new units leave the warehouse factory-sealed exactly as received — so buyers receive equipment that has been sourced, stocked, and handled directly by our own team.
Hewlett-Packard's test and measurement business was spun off as Agilent Technologies in 1999. That test and measurement operation was subsequently established as Keysight Technologies in 2014, the company that carries the lineage of these instruments today.
| Specification | Value |
|---|---|
| Frequency | |
| Frequency Range (ESG-D1000A) | 250 kHz to 1000 MHz |
| Resolution | 0.01 Hz |
| Switching Speed (Modulation On) | <45 ms, typical |
| Switching Speed (Modulation Off) | <35 ms, typical |
| Accuracy | Same as timebase |
| Sweep Modes | |
| Operating modes | Step: frequency & power, and arbitrary list |
| Dwell Time | 2 ms to 60 sec |
| Number of Points | 2 to 401 |
| Internal Reference Oscillator | |
| Aging Rate (Standard, typical) | <±2 ppm/yr |
| Aging Rate (High Stability, Opt 1E5) | <±0.1 ppm/yr or <±0.0005 ppm/day after 45 days |
| Temperature (Standard) | <±1 ppm |
| Temperature (High Stability, Opt 1E5) | <±0.05 ppm, typical (0° to 55° C) |
| Line Voltage (Standard) | <±0.1 ppm (+5%, -10%) |
| Line Voltage (High Stability, Opt 1E5) | <±0.002 ppm, typical (+5%, -10%) |
| Timebase Reference Output | |
| Frequency | 10 MHz |
| Amplitude | >0.35 Vrms into 50 ohm load |
| External Reference Input | |
| Frequency | 1, 2, 5, 10 MHz ± typ. 10 ppm (Option 1E5: 1 ppm, typical) |
| Amplitude | >0.15 Vrms |
| Input Impedance | 50 ohm |
| Output | |
| Range (250 kHz to 1000 MHz) | +13 to -136 dBm |
| Range (>1000 MHz to 3000 MHz) | +10 to -136 dBm |
| Range (>3000 MHz to 4000 MHz) | +7 to -136 dBm |
| Resolution | 0.02 dB |
| Level Accuracy, +7 to -127 dBm (250 kHz to 2 GHz) | ±0.5 dB |
| Level Accuracy, +7 to -127 dBm (2 GHz to 4 GHz) | ±0.9 dB |
| Level Accuracy, <-127 dBm (250 kHz to 2 GHz) | ±1.5 dB |
| Level Accuracy, <-127 dBm (2 GHz to 4 GHz) | ±2.5 dB |
| Attenuator Hold Level Range | >17 dB |
| Switching Speed | <25 ms typical |
| Switching Speed (With Power Search Mode) | <210 ms typical |
| Reverse Power Protection (250 kHz to 2000 MHz) | 50 Watts |
| Reverse Power Protection (>2000 MHz to 4000 MHz) | 25 Watts |
| Max DC Voltage | 50 V |
| SWR (250 kHz to 2000 MHz, typical) | <1.4:1 |
| SWR (>2000 to 4000 MHz, typical) | <1.9:1 |
| Output Impedance | 50 ohms |
| Level Accuracy with Digital Modulation | |
| pi/4 DQPSK or QPSK Formats | ±0.15 dB |
| Constant Amplitude Formats (FSK, GMSK, etc.) | no degradation in power level accuracy |
| Level Accuracy with ALC Off | ±0.5 dB, typical |
| Spectral Purity | |
| SSB Phase Noise (20 kHz offset) at 500 MHz | <-120 dBc/Hz |
| SSB Phase Noise (20 kHz offset) at 1000 MHz | <-116 dBc/Hz |
| SSB Phase Noise (20 kHz offset) at 2000 MHz | <-110 dBc/Hz |
| SSB Phase Noise (20 kHz offset) at 3000 MHz | <-104 dBc/Hz |
| SSB Phase Noise (20 kHz offset) at 4000 MHz | <-104 dBc/Hz |
| Residual FM (Phase Noise Mode 1, CW, 0.3-3 kHz BW, CCITT, rms) | |
| Residual FM (Phase Noise Mode 2) | |
| Harmonics (<=+4 dBm output level) | <-30 dBc |
| Nonharmonics (250 kHz to 1000 MHz) | <-65 dBc |
| Nonharmonics (>1000 MHz to 2000 MHz) | <-59 dBc |
| Nonharmonics (>2000 MHz) | <-53 dBc |
| Subharmonics (<=1000 MHz) | None |
| Subharmonics (>1000 MHz) | <-40 dBc |
| IQ Modulation | |
| I&Q Inputs Input Impedance | 50 ohms |
| Full Scale Input | [square root of (I2 + Q2)] = 0.5 Vrms |
| External Input RF Bandwidth (1 dB) | 20 MHz, typical |
| DC Offset (I + Q independently adjustable) | ±100% |
| I/Q Gain Ratio | ±4 dB |
| Static EVM (rms): <0.6 GHz | <0.75% |
| Static EVM (rms): 0.6 to 2 GHz | <0.5% |
| Static EVM (rms): 2 to 3.7 GHz | 0.75% |
| Static EVM (rms): <=4 GHz | <1% |
| Magnitude Error (rms): <0.6 GHz | <0.5% |
| Magnitude Error (rms): 0.6 to 2 GHz | <0.35% |
| Magnitude Error (rms): 2 to 3.7 GHz | <0.5% |
| Magnitude Error (rms): <=4 GHz | <0.75% |
| Phase Error (rms): <0.6 GHz | <0.35° |
| Phase Error (rms): 0.6 to 2 GHz | <0.25° |
| Phase Error (rms): 2 to 3.7 GHz | <0.35° |
| Phase Error (rms): <=4 GHz | <0.5° |
| Origin Offset (dBc): <0.6 GHz | <-46 |
| Origin Offset (dBc): 0.6 to 2 GHz | <-46 |
| Origin Offset (dBc): 2 to 3.7 GHz | <-40 |
| Origin Offset (dBc): <=4 GHz | <-40 |
| Frequency Modulation | |
| Maximum Deviation | N x 10 MHz |
| Resolution | 0.1% of deviation or 1 Hz, whichever is greater |
Deviation Accuracy (1 kHz rate, dev. | <±(3.5% of FM deviation + 20 Hz) | |
| FM1 1 dB Bandwidth | dc/20 Hz to 100 kHz |
| FM1 3 dB Bandwidth, typical | dc/5 Hz to 10 MHz |
| FM2 1 dB Bandwidth | dc/20 Hz to 100 kHz |
| FM2 3 dB Bandwidth, typical | dc/5 Hz to 1 MHz |
| Distortion (1 kHz rate, THD, dev. = N x 100 kHz) | <1% |
| Phase Modulation | |
| Maximum Deviation | N x 90 radians |
| Resolution | 0.1% of set deviation |
| Deviation Accuracy (1 kHz rate) | <±(5% of deviation + 0.01 radians) |
| Normal BW (N x 90 rad): PM1 / PM2 | dc to 100 kHz / dc to 100 kHz |
| High BW (N x 2pi rad): PM1 / PM2 | dc to 1.5 MHz (typ) / dc to 1 MHz (typ) |
| High BW (N x pi/2 rad): PM1 / PM2 | dc to 4 MHz (typ) / dc to 0.9 MHz (typ) |
Distortion (1 kHz rate, THD, dev | <1% | |
| Amplitude Modulation (fc>500 kHz) | |
| Range (envelope peak <=max specified power) | 0 to 100% |
Important: Reverse power protection: 50 W from 250 kHz to 2000 MHz and 25 W from >2000 MHz to 4000 MHz; maximum DC voltage 50 V.
Important: This datasheet covers the E4430A (ESG-D1000A), specified at 250 kHz to 1000 MHz; however the Output, Frequency Bands, and Spectral Purity tables list values for ranges up to 4000 MHz that apply to higher-frequency members of the ESG-D series. Verify the installed frequency range on this specific unit's configuration.
This pre-owned unit is inspected and functionally verified in-house before it ships and is backed by our pre-owned warranty. To confirm its exact condition, firmware revision, installed options, or included accessories for your application before ordering, contact our Test Architects.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
Model No
Agilent
Condition
Pre-Owned
Manufacturer
Agilent
Rf_gen_freq
250 kHz to 1000 MHz
100000
High-stability timebase
UN4
I/Q Baseband Generator with 8 Mbit Pattern RAM
