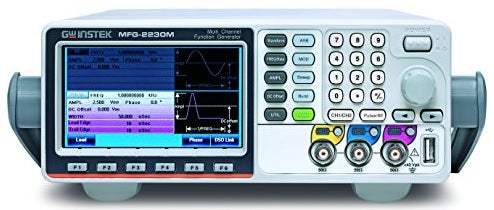

MFG-2230M Instek Function Generator New

MFG-2230M Instek Function Generator New

Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 30MHz Dual Channel Arbitrary Function Generator with Pulse Generator, Modulation, 320MHz RF Signal Generator, Power Amplifier
  • 2 Channel, 30 MHz, Multi-Channel Function Generator W/ARB, 25 MHz Pulse Generator, and Modulation/Sweep/Burst/Frequency Counter
  • 2 Equivalent Performance Arbitrary Channels Frequency: 1µHz~60MHz
  • Pulse Generator Frequency: 25MHz
  • True Point by Point Output Arbitrary Waveform Function: 200MSa/s,
  • 100MHz Repetition Rate, 14-bit Resolution,16k Point Memory Depth
  • Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis
  • Frequency Counter: 150MHz, 8 bits
  • AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
  • USB Host/USB Device/LAN (MFG-22XX only)
  • 4.3 Inch TFT Color Display
View full details
More Details
Specifications
Datasheets

Accessories:

  • Quick Start Guide
  • CD-ROM with MFG Software
  • User Manual

Specifications:

  • 30 MHz

The Instek MFG-2230M is a 2 Channel, 30 MHz, Multi-Channel Function Generator W/ARB, with a 25 MHz Pulse Generator, and a Modulation/Sweep/Burst/Frequency Counter.The Instek MFG-2230M multi-channel function generator, which has up to 5 simultaneous output channels, including CH1 and CH2 equivalent performance dual channel arbitrary function generator with the maximum 60MHz for both channels; RF signal generator, a standard AFG, which produces the maximum 320MHz sine wave and various modulation RF signals; pulse generator, whose frequency reaches 25MHz; power amplifier, which is ideal for audio range.

Model No

MFG-2230M

Condition

New

Manufacturer

Instek

Frequency

30 MHz
