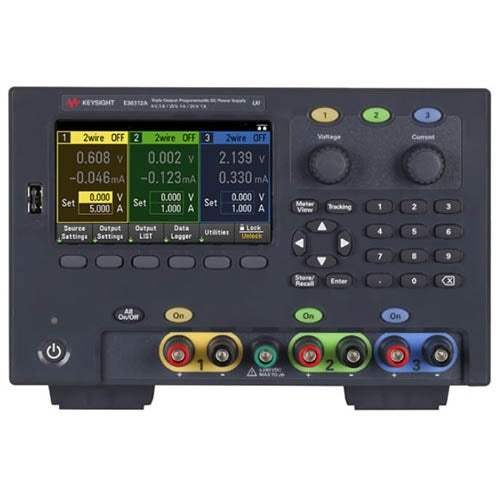

E36312A Agilent DC Power Supply Used

E36312A Agilent DC Power Supply Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • 4.3-inch LCD color display
  • Color-coded channels
  • Individual knobs for voltage and current
  • LAN (LXI), USB and GPIB
  • Digital I/O port
  • Individual on/off on all channels
  • Electrically isolated channels
  • Front and rear output terminals
  • Excellent programming/readback accuracy
  • Low output ripple and noise
  • Excellent line/load regulation: 0.01%
  • Fast transient response time: < 50 us
  • Small current measurement: 80 uA
  • Low acoustic noise
  • Auto series/parallel connections
  • 2-wire or 4-wire remote sense
  • Data logging
  • Output sequencing
  • Output LIST
  • Output coupling
  • Tracking
  • Triggering
  • Over voltage, over current and over temp protection
Share on
View full details
More Details
Specifications
Options
Datasheets

Specifications

DC output rating (0 to 40°C)

  • Channel 1: 0 to 6 V/0 to 5 A
  • Channel 2: 0 to 25 V/0 to 1 A
  • Channel 3: 0 to 25 V/0 to 1 A
  • Output ripple and noise (20 Hz to 20 MHz):
  • Normal mode voltage: < 350 μVrms/2 mVpp
  • Programming accuracy ± (% of output + offset):

Voltage/Current

  • Channel 1: 0.03% + 2 mV/0.04% + 3 mA
  • Channels 2 and 3: 0.03% + 5 mV/0.04% + 2 mA
  • Readback accuracy ± (% of output + offset)

Voltage/Current

  • Channel 1: 0.04% + 2mV/0.04% + 5 mV
  • Channels 2 and 3: 0.04% + 3mA/0.04% + 3 mA
  • Low range current, 20 mA: 0.25% + 80 μA
  • Command processing time: < 10 ms
  • Up/down programming settling time to within 1% of total excursion:

Up full load

  • Channel 1: 11 msec
  • Channels 2 and 3: 50 msec

Up no load

  • Channel 1: 10 msec
  • Channels 2 and 3: 20 msec

Down full load

  • Channel 1: 13 msec
  • Channels 2 and 3: 45 msec

Down no load

  • Channel 1: 100 msec
  • Channels 2 and 3: 150 msec

The Agilent/Keysight Technologies E36312A Triple Output Programmable DC Power Supply, 6 V, 5 A and 2 x 25 V, 1 A, 80 W, LAN, USB is ready for your application. With low output ripple/noise and accurate voltage/current measurement, you can test with confidence and power your next insight. The E36312A is one of the quietest power supplies in its class. It automatically lowers the fan speed under the load/ no load condition to eliminate annoying acoustic noise through a thermal control circuit. At a typical noise level of less than 26 dBA under no load condition and less than 50 dBA under full load condition, it allows you to work in a quiet and undisturbed environment.

Model No

E36312A

Condition

Used

Manufacturer

Agilent

Current

5 A

Voltage

25 V

Power

80 W

GPB

GPIB interface module

Agilent E36300 Series Datasheet
