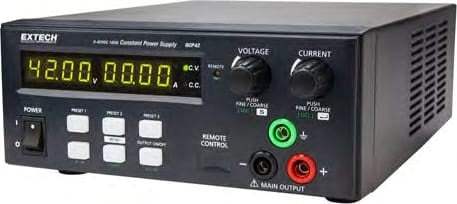

The Extech DCP42 is a 160W single-output continuous switching DC power supply with USB connectivity. It delivers an adjustable output of 0 to 42V and 0 to 10A, and its continuous switching design provides high-efficiency electrical power conversion for greater energy conservation and lighter weight. A defining characteristic is its constant-power behavior: the supply continuously calculates and adjusts the voltage and current limit points according to the available 160W maximum, so at maximum current of 10A the voltage is limited to 16V, while at maximum voltage of 42V the current is limited to 3.8A.
The DCP42 is intended for laboratory use, bench testing, service and repair, research and development facilities, and educational and institutional training. Its adjustable wide-range output and programmable presets make it suited to the varied power requirements encountered across these bench and lab environments.
ValueTronics stocks and holds its own inventory in a 20,000 sq ft secure warehouse at 1675 Cambridge Drive in Elgin, Illinois, so the instruments we sell are on hand rather than sourced on demand.
Extech Instruments became part of FLIR Systems following FLIR's acquisition of the company in 2007, and current Extech-branded products are published under FLIR Systems, Inc.
| Specification | Value |
|---|---|
| Output Voltage | 0 to 42V |
| Output Current | 0 to 10A |
| Basic Accuracy | ±(0.2%+5 counts) |
| Load Voltage Regulation | ≤0.15% (10-100% rated current) |
| Line Voltage Regulation | ≤0.02% (90-264V AC) |
| Load Current Regulation | ≤0.5% (10-90% rated voltage) |
| Line Current Regulation | ≤0.1% (90-264V AC) |
| Ripple and Noise | ≤5m Vrms, ≤50m Vp-p |
| Dimensions / Weight | 7.9 x 3.7 x 9.5” (200 x 95 x 245mm) / 5lbs (2.3kg) |
Important: Constant-power operation: at maximum current (10A) output voltage is limited to 16V, and at maximum voltage (42V) output current is limited to 3.8A.
This is a brand-new, factory-sealed unit, supplied exactly as it arrives from the manufacturer and backed by the full manufacturer warranty. For the exact configuration, available options, included accessories, or current lead time for your application, our Test Architects can confirm the details before you order.
ValueTronics supplies both new and used test and measurement equipment. New units ship factory-sealed, exactly as received from the manufacturer; every used unit is inspected and functionally verified in-house at our 20,000 sq ft secure facility in Elgin, Illinois before it ships. Our Test Architects can help you select the condition, calibration, and configuration that fit your application.
Please review the Manufacturer's Data Sheet to verify published specifications. Feedback on this webpage is always welcome — please reach out to your Test Architect at any time for questions or concerns. Thank you, we truly appreciate you being our customer.
Model No
Extech
Condition
Factory New
Manufacturer
Extech
Dcsup_amps
10A
Dcsup_volts
42V
Dcsup_watts
160W
