3032B Protek DC Power Supply Used

Shipping calculated at checkout.

Product variants

check availability

Request a Quote

Additional Features:

Dual 0-30V @0-3 Amps Digital 4 LED Display
Power: 180 W
Display: LED, Dual 3 Digit
Noise free output for servicing RF equipment
Energy saver design allows cooler operation at all output levels for better stability and operating life
Excellent line and load regulation characteristics
Fully isolated outputs for series or parallel operation
Coarse and Fine voltage controls
Each output has two 3 digit LED read-outs for monitoring voltage and current
Front Panel LEDs indicate constant voltage or constant current operation and overload condition

Share on

View full details

More Details

Specifications

Datasheets

Specifications

Outputs 1 and 2

Volts: 0 to ±30V DC
Amps: 0 to ±3 Amps

Constant Voltage Mode

Line and Load Regulation: 0.02% + 2mV
Ripple and Noise: < 1 mV RMS

Constant Current Mode

Load Regulation: # 0.05% + 5mA
Line Regulation: # 0.05% + 0.25mA
Ripple and Noise: # 2mA RMS

Digital Display Resolution

Volts: 100mVCurrent: 10mA
Accuracy: ± (0.5% + 3 D)

General Specifications

Operating Temperature: 0 to 35°C
AC Input Volts: 120V/220V
Power Consumption: 300VA, 50/60Hz
Size: 6.3" H × 5" W × 13" D

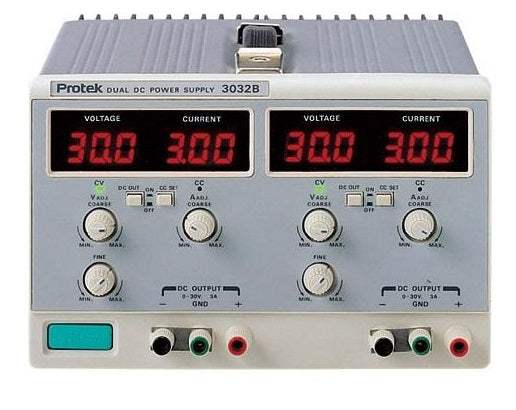

The Protek 3032B is a Dual Output 30 V, 3 A, 180 W, DC Power Supply with an LCD Digital Display. The Protek 3032B has a noise free output for servicing RF equipment, and fully isolated outputs for series or parallel operation.

The Protek 3032B's energy saver design allows cooler operation at all output levels for better stability and operating life, as well as excellent line and load regulation characteristics.

Model No

3032B

Condition

Used

Manufacturer

Protek

Current

3 A

Voltage

30 V

Power

180 W
