SLM-4 Sorensen DC Electronic Load Used

SLM-4 Sorensen DC Electronic Load Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • 150 memory settings for DC modules
  • 5 memory settings for AC modules
  • Memory settings store entire chassis condition
  • Plug-in design allows for easy replacement of different load modules as applications change
  • Flexible configuration allows any bay to accept any SLM (single module) or SLD (dual) series load module
  • Four analog programming inputs on the rear panel DB9 connector can control the four SLM load modules' load current with arbitrary waveforms
  • Built-in GPIB/RS232 interface, which uses one GPIB address to control up to four electronic load modules with set load status and read back meter capabilities
  • Designed to permit mounting in a standard 19-inch rack for system application
  • Equipped with tilt stands on its two front feet which can be flipped forward to provide an inclined viewing angle of the front panel for bench-top use
  • Dimensions (W*H*D): 17.3 x 7.0 x 017.5 in. (440 x 177 x 445 mm)
Share on
View full details
More Details
Specifications
Datasheets

AC Input

  • Line: 110V/115V±10%; 200V/230V±10%
  • Frequency: 50/60 Hz
  • Fuse: T2A/250V (5x20mm); T1A/250V (5x20mm)
  • Max Power Consumption: 100W

Regulatory Compliance

  • Certified to UL 61010-1, CSA C22.2 No. 61010.1 and IEC/EN 61010-1
  • CE Compliant: Low Voltage Directive (73/23/EEC) using EN 61010-1, and EMC Directive (89/336/EEC) using EN 61326
  • FCC Compliant to 21 CFR, Subpart J.

The SLM-4 chassis has a four-bay configuration for multichannel and ATE requirements. The SLM-4 chassis is compatible with SLM and SLD loads. Each chassis contains non-volatile memory capable of storing up to 150 module setups and nine 16-step sequences for automated, standalone testing. Or for more complex test sequences, the chassis come with GPIB and RS-232 as standard interfaces.

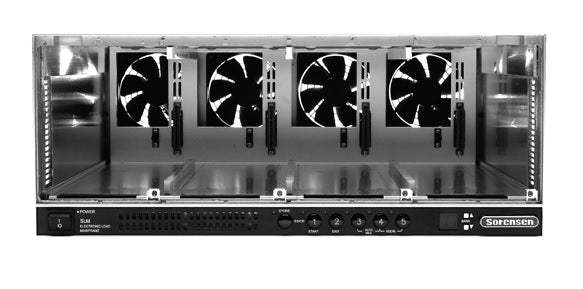

The SLM-4 electronic load chassis is designed with open bays to easily receive up to four load modules, which slide into their respective bays from the rear of the chassis.

The SLM-4 chassis provides high performance, easy operation and a cost-effective solution for power source testing. There are five power supplies in the SLM-4 chassis, one for the system controller and one for each of the four optically isolated channels.

The SLM-4 Chassis can operate with 100, 115, 200 or 230VAC input.

Model No

SLM-4

Condition

Used

Type

Mainframe

Power

1.2 kW

Manufacturer

Sorensen

Sorensen_Ametek_SL_Series
