8540 B&K Precision DC Electronic Load New

8540 B&K Precision DC Electronic Load New

$612
$612 $680
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty
Similar Used Units
Used unit product
8540 B&K Precision DC Electronic Load Used $395.00
Request a Quote

 Additional Features:

  • Operates between 0-60 VDC, 1 mA-30 A (150 W maximum)
  • Easy operation
  • Bright, easy-to-read display
  • Very compact and light weight
  • Two current ranges: 3 A (1 mA resolution) and 30 A (10 mA resolution)
  • Constant current (CC), constant resistance (CR) and constant voltage (CV) operation
  • Over-current and over-voltage protection
  • Short mode to simulate shorts
  • Save up to 400 instrument settings
  • One-Year Warranty
View full details
More Details
Specifications
Datasheets
Manuals

Included Accessories:

  • User Manual
  • Power Cord

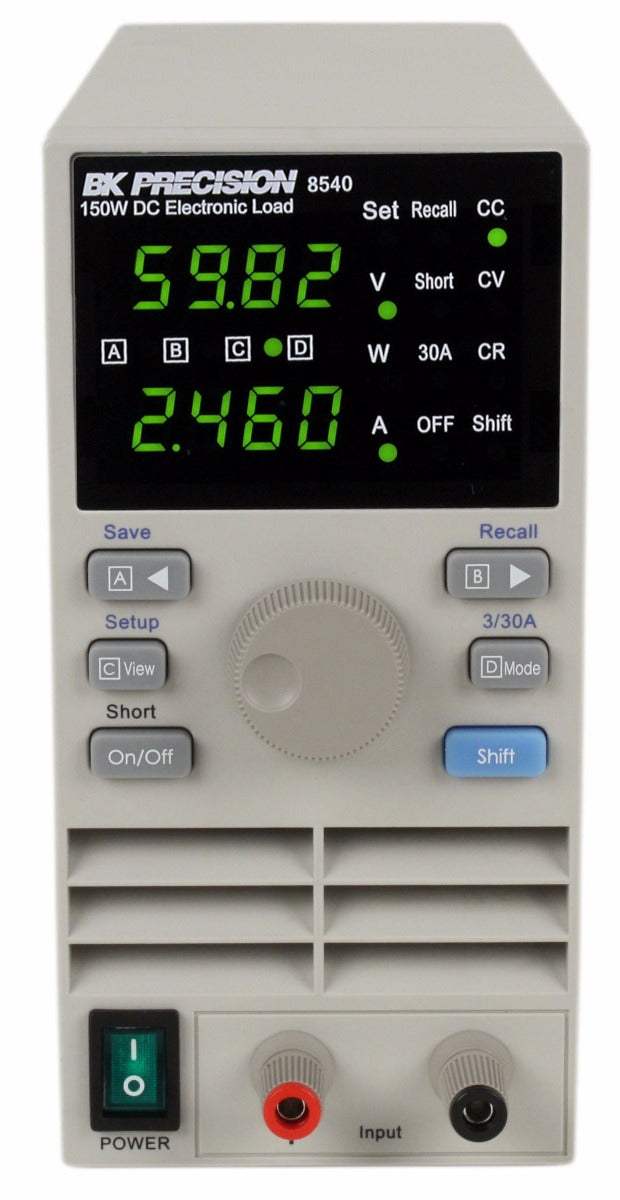

The BK Precision 8540 DC electronic load is a very compact, economically priced instrument that is at home on both the bench and the production floor. Though this is an instrument in a small package, it can reliably test a 5 volt power supply to 30 amps and do it continuously.

The load can operate in CC, CV or CR mode while voltage/current or resistance/power values are measured and displayed in real time, making it well suited to test a variety of DC power sources. The Bk Precision 8540's performance is comparable to most full size bench DC electronic loads, yet it does the job at half the price and takes up half the space on your bench.

Model No

8540

Condition

New

Volts

60 V

Amps

30 A

Type

Single

Power

150 W

Manufacturer

B&K Precision

BK_Precision_8540
BK_Precision_8540_Instruction_Manual
