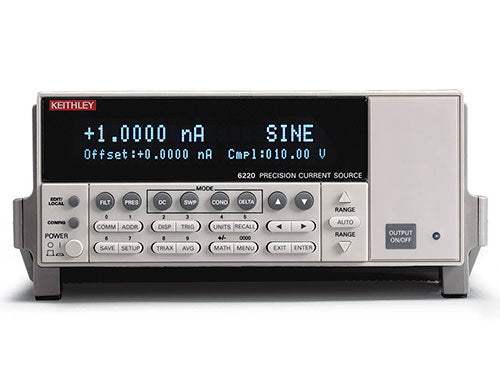

6220 Keithley DC Precision Current Source Used

6220 Keithley DC Precision Current Source Used

Calibrations
Check Pricing
Request a Quote

Request a Quote To Get An EDU Discount

Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Key Features at a Glance

  • DC current source: 100 fA to 105 mA sourcing and sinking
  • Output impedance >1014 Ω on the 2 nA / 20 nA ranges
  • Voltage compliance programmable 0.1 V to 105 V in 10 mV steps
  • 65,000-point source memory for comprehensive sweep execution
  • Model 220 emulation mode for drop-in legacy replacement
  • RS-232, GPIB, Trigger Link, and digital I/O interfaces built in
  • Reconfigurable triax output for application-specific guarding
  • Maximum trigger rate of 1,000 readings per second
Share on
View full details
More Details
Specifications
Datasheets

In summary, the Keithley 6220 is a precision DC current source designed for low-current sourcing applications from 100 fA to 105 mA with voltage compliance to 105 V and four-quadrant source-or-sink operation. It is a programmable stimulus instrument optimized for semiconductor, nanotechnology, and superconductor measurement tasks where signal integrity at picoampere and femtoampere levels is required.

What is the Keithley 6220 used for?

The 6220 is used to source precise DC currents into devices under test for I-V characterization, Hall-effect measurement, resistance measurement using delta mode, and pulsed-sourcing tasks. It is most commonly paired with the Keithley 2182A Nanovoltmeter to form a complete low-noise resistance and differential-conductance measurement system.

Typical workflow: the operator programs a current sweep or single-point stimulus, connects the device under test through the triaxial output, and captures the resulting voltage response with the 2182A. The 6220 controls the 2182A directly over Trigger Link, so the pair behaves as one instrument.

How does the 6220 compare to a homemade voltage-plus-resistor current source?

A precision current source delivers a programmed current regardless of DUT impedance, whereas a voltage source feeding a series resistor only approximates constant current when the load is small relative to the resistor. The 6220 also provides programmable voltage compliance to protect sensitive devices — a feature absent from improvised solutions.

Factual grounding — source ranges and accuracy

The 6220 covers nine source ranges from 2 nA to 100 mA. Representative one-year accuracies (23°C ±5°C) include ±(0.05% + 10 nA) on the 20 mA range and ±(0.05% + 100 nA) on the 200 µA range. Programming resolution reaches 100 fA on the 2 nA range. The instrument warms up to rated accuracy in one hour and operates from 0°C to 50°C.

Entity authority and application fit

Keithley source-measure and current-source instruments are the reference platform in semiconductor device physics, materials science, and precision electrochemistry. The 6220 / 2182A pair is widely cited in published low-temperature transport and superconductor literature as the standard delta-mode measurement solution.

Application bullets

  • Nanotechnology: differential conductance, pulsed sourcing and resistance
  • Optoelectronic device characterization with current-controlled stimulus
  • Replacement for AC resistance bridges when paired with the 2182A (low-power resistance)
  • Replacement for lock-in amplifiers when paired with the 2182A (low-noise resistance)
  • Low-impedance Hall measurements with delta-mode noise rejection

Accessories Supplied

Standard accessory packages ship where applicable. Unnecessary accessories may not be included on this Pre-Owned unit; contact a Test Architect to confirm anything specific your application requires.

Product Core and Specifications

The 6220 builds on Keithley's long-standing 220-series current-source architecture. A 16-bit current digital-to-analog stage drives a high-impedance output stage with reconfigurable guarding, and the firmware synchronizes the source with an external nanovoltmeter for delta-mode operation. The current source is fully programmable from the front panel or remotely via RS-232 or GPIB. The 6220 emulates the Model 220 command set, allowing existing test code to run unchanged.

Source range, accuracy, and noise

Range (+5% overrange) 1-Year Accuracy Programming Resolution Typical Noise (p-p / rms)
2 nA ±(0.4% + 2 pA) 100 fA 250 / 50 pA
20 nA ±(0.3% + 10 pA) 1 pA 250 / 50 pA
200 nA ±(0.3% + 100 pA) 10 pA 2.5 / 0.5 nA
2 µA ±(0.1% + 1 nA) 100 pA 25 / 5.0 nA
20 µA ±(0.05% + 10 nA) 1 nA 500 / 100 nA
200 µA ±(0.05% + 100 nA) 10 nA 1.0 / 0.2 µA
2 mA ±(0.05% + 1 µA) 100 nA 5.0 / 1 µA
20 mA ±(0.05% + 10 µA) 1 µA 20 / 4.0 µA
100 mA ±(0.1% + 50 µA) 10 µA 100 / 20 µA

General

Specification Value
Output impedance >1014 Ω on 2 nA / 20 nA ranges
Voltage compliance 0.1 V to 105 V in 0.01 V steps, bipolar
Maximum output power 11 W, four-quadrant source or sink
Program memory 65,000 points; max trigger rate 1,000/s
Interfaces RS-232, GPIB (IEEE-488.1/.2 SCPI), Trigger Link, digital I/O
Common mode voltage 250 V rms DC; isolation >109 Ω, <2 nF
Environment 0°C to 50°C operating; 1-hour warm-up to rated accuracy
Passive cooling No fan

Delta-Mode Pairing Note

For low-noise resistance and differential-conductance work, the 6220 is designed to pair with the Keithley 2182A Nanovoltmeter. Connection cables (Trigger Link and communication) are listed under Accessories Supplied. The 2182A is sold separately or as part of the 6220/2182A delta-mode system.

About This Pre-Owned Unit

  • Warranty included.
  • Functional verification included.
  • Calibration available as an optional add-on service.
  • Unnecessary accessories may not be included; contact a Test Architect to confirm anything specific.
