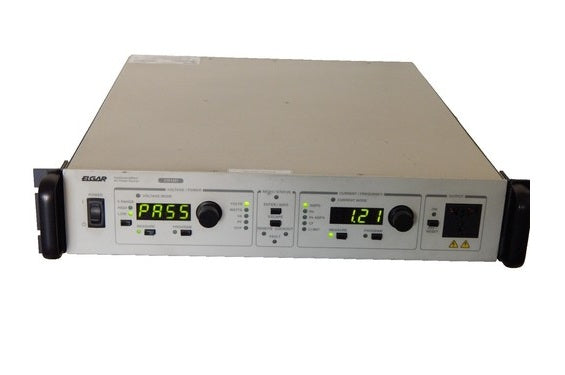

CW1251M Elgar AC Source Used

CW1251M Elgar AC Source Used

Shipping calculated at checkout.
Calibrations
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • Output Power: 1250VA
  • Voltage Ranges: 0 to 135 VRMS or 0 to 270 VRMS
  • Current: 9.4 ARMS in 135 VAC range or 4.7 ARMS in 270 VAC range
  • Frequency Range: 45 to 500 Hz
  • Two independent front-panel 4 digit voltage/current/frequency meters
  • Voltage and current can be set from individual 10-turn potentiometer knobs
  • Overvoltage, overcurrent and overtemperature protection
  • Separate output-on switch controls power to the load
  • Low profile 2U (3.5") high, full-rack (17") wide form factor
  • Remote control via analog 0-5 VDC programming voltage
  • Dual speed fan with side air intake, exhaust to rear
  • Three phase operation
  • Easily slaved for 3 phase output
Share on
View full details
More Details
Specifications
Datasheets
Manuals

Applications Include:

  • Testing for real world sine wave power conditions
  • 400 Hz testing for avionics equipment
  • 50/60 Hz margin testing
  • Ballast testing
  • Components testing
  • Power supply testing for AC to DC converters

The ContinuousWave (CW) Series of AC power sources provides clean single phase power at an impressive price/ performance ratio. This compact switch mode source CW1251M is a manual (CW-M) with standard IEEE-488.2 and RS 232 control.

All models can be operated in a benchtop or rackmount configuration. The front panels have two bright four digit, seven segment displays. Power Factor Corrected (PFC) universal input voltage allows maximum power to be delivered from an AC outlet without the user selecting the range. Fully rated current is delivered for either output voltage range of 135 VAC or 270 VAC over a standard frequency range of 45 to 500 Hz.

Both series can be paralleled to provide extra power. A separate output-on switch controls power to the load. Remote voltage sense is standard. Transformer coupled output is protected against overvoltage and overcurrent. The unit is also protected against over temperature conditions. A two-speed fan results in quieter operation at lower power levels. All models are CE marked.

Model No

CW1251M

Condition

Used

Manufacturer

Elgar

Frequency

500 Hz

Phase

1

Power (va)

1.25 kVA

Volts

270 V

Elgar_CW_Series_801_1251_2501-M_P
Elgar_CW-M_Series_Operation_Manual
