• AFC-31080 Preen AC Source
1 1
New
Earn Loyalty with Rewards
Compare

AFC-31080 Preen AC Source New

AFC-31080 Preen AC Source New

Shipping calculated at checkout.
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Output Power: Single Phase Output (0.5kVA to 120kVA)
  • Output Frequency: Type A to Type E frequency range according to the application
  • Output Voltage: 5~150V/10~300VL-N (520VL-L), Optional for custom output voltage range available
  • Double conversion, Galvanic isolation input to input, Clean Output, THD: < 2% (Optional for <1%)
  • Analog knob for adjusting V and Hz, LED display for showing output V, A, kW, Hz
  • One single stand alone unit up to 2000kVA (not parallel connected multiple units) with high MTBF
  • All models equipped with input breaker and output magnetic switch with safety protection
  • Optional output EMI filter for EMC chamber power applications
  • Optional overload capacity for motor or inductive type load
  • Optional for environmental proof or outdoor applications
  • Optional RS232 or RS485 remote controlling the output V and Hz (no monitoring available)
View full details
More Details
Specifications
Datasheets

Applications:

  • Burn-In, Aging Test
  • Quality Assurance Test
  • Clean Power, Chamber Power
  • Military Maintenance Power
  • Product Test and Verification
  • Transformer Test

Specifications:

  • Power (VA) - 80000.00
  • Volts - 300.00
  • Amps - 666.70
  • Frequency - 60.00
  • Phase - 1

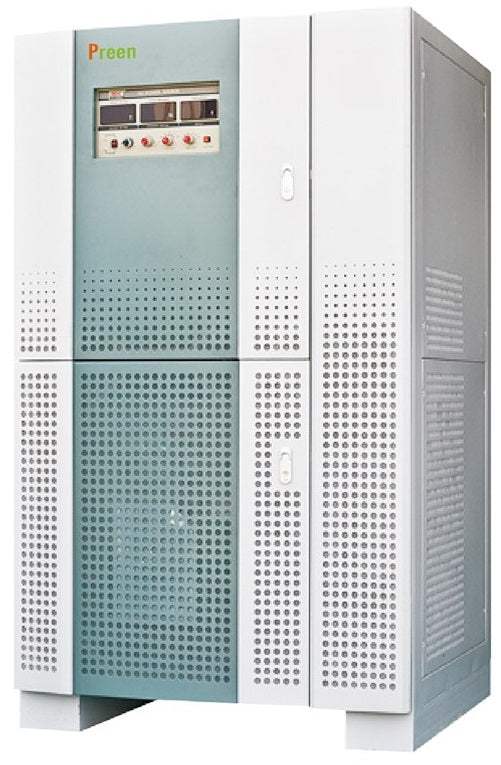

Preen’s AFC-31080 is an adjustable AC power source, provides double power conversion from a variety of inputs to pure clean sinusoidal output, isolate the harmonics from the grid system, fully adjustable across the output voltage and frequency ranges.

Model No

AFC-31080

Condition

New

Manufacturer

Preen

Frequency

60 Hz

Phase

1

Power (va)

80 kVA

Volts

300 V

Preen_Catalog
Compare All Models
