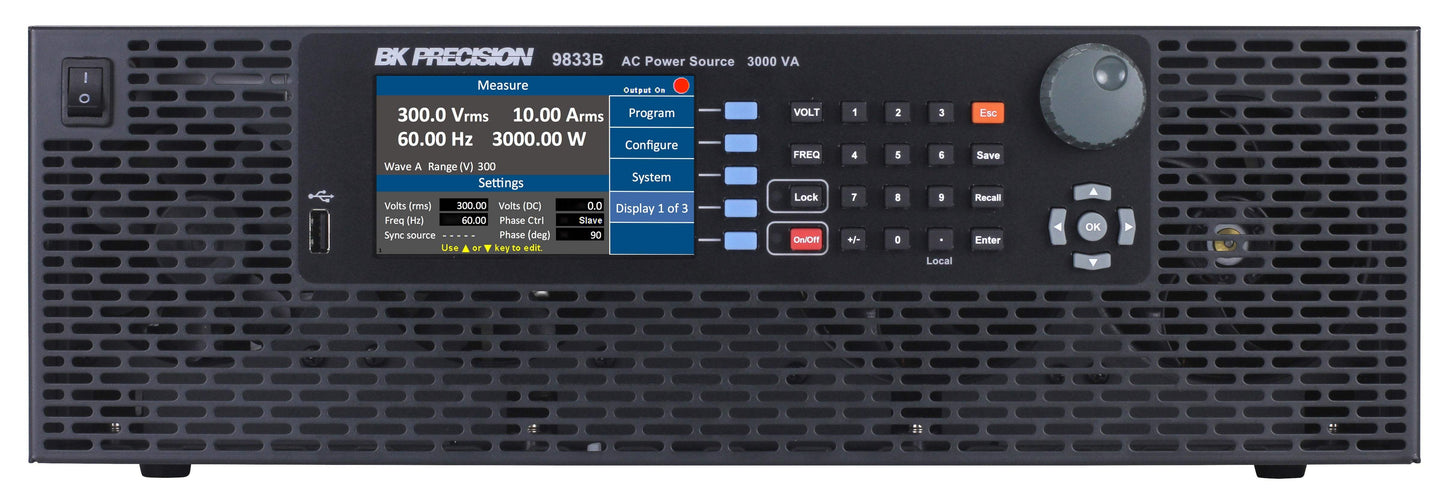

9833B B&K Precision AC Source New

9833B B&K Precision AC Source New

$8,620
$8,620 $8,620
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty
Similar Used Units
Used unit product
9833B B&K Precision AC Source
Request a Quote

Features:

  • Max. Power: 3000 VA
  • Max. Voltage: 150 V / 300 V
  • Max. Current (rms): 0 - 150 V 30 A; 0 - 300 V 15 A
  • Frequency Range: Single phase 45 Hz to 1200 Hz; 3-Phase 45 Hz to 600 Hz
  • Total Harmonic Distortion (THD: ≤ 0.5 % at 45 Hz to 400 Hz (resistive load)
  • Remote Interface: LAN, USB, GPIB, and RS232
  • AC, DC and AC+DC power source
  • 3-Phase capability using 3 AC sources and the 3-Phase kit (TL983P-KIT)
  • Low total harmonic distortion (THD) meets the IEC 61000-3-2 standard
  • Comprehensive measurement capabilities Vrms, Arms, Vdc, +Apk, -Apk, inrush current, frequency, power factor, apparent power, reactive power, true power, and crest factor
  • 0.98 power factor at AC input stage
  • Built-in standard waveforms sine, square, clipped sine
  • 30 built-in THD waveforms
  • Amplifier mode with 1.2 kHz bandwidth for generating user-defined arbitrary waveforms
  • Step, List and Pulse modes for generating power line disturbance (PLD) simulations. List mode supports 10 user-defined programs with up to 100 programmable steps
  • Generate custom harmonic waveforms on a PC and download them to the instrument’s 5 non-volatile memory locations
  • Digital I/O port supporting external trigger, transient indication, failure status indication, remote inhibit, RS232, and external analog output level programming interface
  • Comprehensive protection modes OVP, OCP, OPP, OTP, fan failure, output timer and key lock
  • LabVIEW™ driver and application software with soft panel for remote control available
  • Control the AC source from a standard web browser via built-in web server
View full details
More Details
Specifications
Datasheets

Applications:

  • Pre-compliance testing
  • Simulate grid faults, voltage sags,frequency, and phase disturbances, according to IEC61000-4-11/14/28/34
  • Electromagnetic compatibility (EMC), according to IEC61000-3-2
  • Consumer electronics, appliances, industrial controls, avionics
  • Evaluate transformers, TRIACs, SCRs, and passive components

Included Accessories:

  • AC power cord with input connector, test report & certificate of calibration

Optional Accessories:

  • Rackmount ears with handles (RK3U) & 3-Phase sync adapter (TL983P), 3-Phase kit (TL983P-KIT)

The 9830B Series programmable AC power sources provide high performance and low total harmonic distortion in a 3U form factor. The addition of positive and negative DC offset voltages expands the AC capabilities to operate in DC and AC+DC output coupling modes. The user can select built-in and user-defined harmonic waveforms or select from standard sine, square or clipped sine outputs. The high output current crest factor and low input resistance are suitable for high inrush current measurements when evaluating capacitive or inductive loads.

3-Phase power can be achieved by connecting 3 units of the same model in a master and slave configuration using the optional TL983P 3-Phase sync adapters.

Model No

9833B

Condition

New

Manufacturer

B&K Precision

Frequency

1.2 kHz

Phase

1

Power (va)

3 kVA

Volts

300 V
