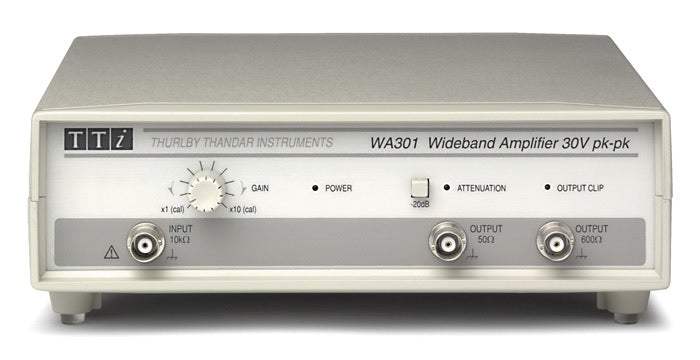

WA301 Thurlby Thandar Instruments Amplifier New

WA301 Thurlby Thandar Instruments Amplifier New

Regular price $291
Sale price $291 Regular price $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • Extends the output range of function generators
  • 30 Volts peak to peak output swing
  • DC to 1MHz bandwidth
  • High impedance input, 0dB to +20dB gain
  • 50 Ohm and 600 Ohm outputs
  • 20dB switchable output attenuator
  • Fully protected output
View full details

Specifications:

  • Bandwidth: -3dB at 1MHz
  • Flatness: -1dB at 400kHz
  • Rise/fall time: <0.5µs
  • Distortion: <0.1% at 1kHz
  • Gain: Vernier adjustment between x1 and x10
  • Input impedance: 10kv
  • Output impedance: 50V and 600V (separate sockets)
  • Output 0dB: 30V pk-pk max. from 50? (15V into 50V) 30V pk-pk max. from 600V (15V into 600V)
  • Output -20dB: 3V pk-pk max. from 50V (1.5V into 50V) 3V pk-pk max. from 600V (1.5V into 600V)
  • DC offset: <5mV

General:

  • Power: 230V or 115V AC nominal 50/60Hz, adjustable internally; operating range ±14% of
  • nominal; 20VA max.; Installation category II
  • Size: 210(W) x 75(H) x 230(D)mm, inc. feet.
  • Weight: 1.1kg
  • Operating Range: + 5°C to 40°C, 20-80% RH.
  • Storage Range: - 40°C to 70°C
  • Safety: Complies with EN61010-1.
  • EMC: Complies with EN55081-1 and EN50082-1

The WA301 is a DC to 1MHz amplifier with a maximum output (e.m.f.) of 30 volts peak to peak from a 50source impedance. A 600 output is also provided. The unit can provide up to 15 volts peak to peak into a 50 load and can drive up to 300mA peak into a low impedance or short circuit

Model No

WA301

Condition

New

Manufacturer

Thurlby Thandar Instruments
