V74 Vitrek HiPot New

V74 Vitrek HiPot New

$3,594.74
$3,594.74 $3,686
In Stock
Shipping calculated at checkout.
Calibrations
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty
Similar Used Units
Used unit product
V74 Vitrek HiPot Used
Request a Quote

Additional Features:

  • 5KV AC/DC/IR/GB/LR HiPot, 20mA max source current
  • 4.3" Color Touch Display - Easy To Use Intuitive User Interface
  • Made in the USA - Designed & Built in San Diego CA
  • Compact, Lightweight, Rugged, Fan Free, Fast (100mS min test time) & Accurate
  • Ground Bond 1-30A RMS (42 A peak), 100µΩ Resolution
  • 100 nano-Amp Leakage Current Resolution
  • Low Cost of Ownership - 2 Year Calibration Interval
  • USB 2.0, Serial/RS232, Digital I/O Interfaces are Standard
  • Continuously Variable Insulation Resistance 20-5000V, 450GΩ Max
  • Multi Mode IR with Steady/Rising Pass Mode
  • Test Memory Stores up to 999 Steps and 60 Test Sequences
  • Internal Self Test Fully Exercises Output and Verifies Current Accuracy
  • Pre-Programmed Daily Verification Test With Optional PVD Test Load
  • 150µS Safety Shutdown
  • Ramped Discharge Capability
  • Selectable ARC Detection 1-20mA
  • Meets UL, CSA, IEC Safety Tester Requirements
  • CE Safety Mark Certified to EN61010
  • 2 Year Parts & Labor Warranty
View full details
More Details
Specifications
Datasheets

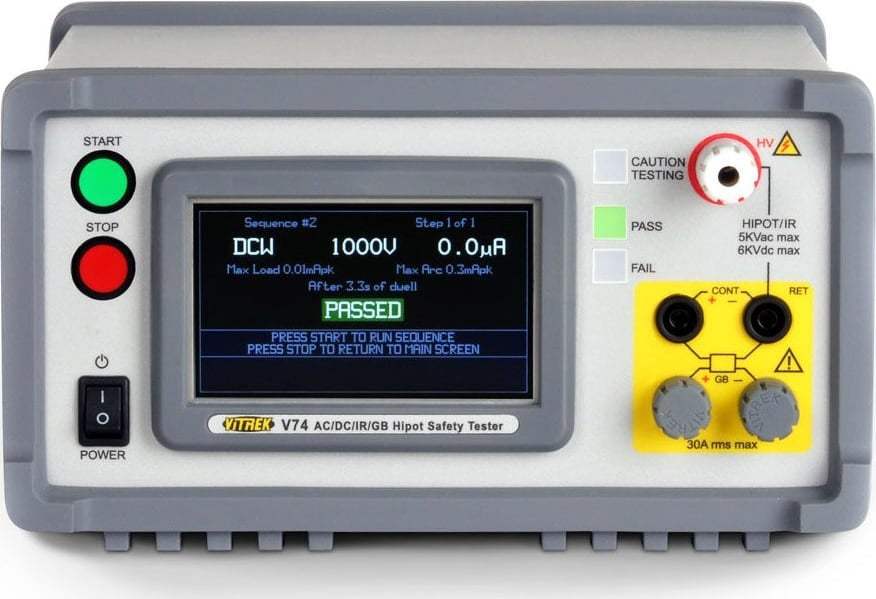

The Vitrek V74 has color touch LCD & high speed DSP technology, the compact & rugged V74 sets the standard for price/performance ratio. Made in the USA to meet tough UL, CSA, TUV and IEC HiPot requirements – the V74 provides unbeatable speed, accuracy, user safety and reliability.

Model No

V74

Condition

New

Manufacturer

Vitrek

Vitrek Electrical Safety Compliance Testing for Appliance Consumer Product manufacturers White Paper
