• 72931 Pomona Adapter
1 1
New
Earn Loyalty with Rewards
Compare

72931 Pomona Adapter New

72931 Pomona Adapter New

$406.99
$406.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

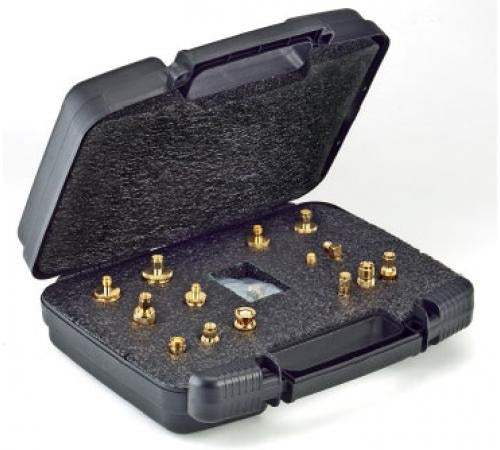

  • All 15 adapters in kit are direct. No intermediate couplers
  • Reduced signal loss in adapters due to absence of couplers
  • Kit includes the most frequently used SMA adapters including SMA / SMA, SMA / BNC, SMA / N, SMA / TNC.
  • See complete list in table below
  • Rugged, lockable, pistol-grip case
  • All parts precision machined brass with tarnish resistant gold or nickel plating
  • Male center pins are gold plated brass
  • Female contacts are gold plated heat treated beryllium copper
  • Insulation material is high density PTFE
View full details
More Details
Specifications
Datasheets

Specifications

           Pomona Part# Description        Nominal Impediance    Frequency Range   Operating Temperature

  • 4296 SMA male/TYPE N male       50 Ohms 0 to 12.4GHz   1.35 to 11GHz      - 65 to +165 C
  • 4283 SMA female TYPE N male    50 Ohms 0 to 11 GHz      1.35 to 11GHz      - 65 to +165 C
  • 4292 SMA male/TNC male           50 Ohms 0 to 12.4 GHz   1.35 to 11GHz      - 65 to +165 C
  • 4293 SMA female/ TNC male       50 Ohms 0 to 12.4 GHz   1.35 to 11GHz      - 65 to +165 C
  • 4291 SMA female/BNC female     50 Ohms 0 to 12.4 GHz   1.35 to 11GHz      - 65 to +165 C
  • 4290 SMA male/ BNC female       50 Ohms 0 to 12.4 GHz   1.35 to 11GHz      - 65 to +165 C
  • 4289 SMA female/ BNC male       50 Ohms 0 to 12.4 GHz   1.35 to 11GHz      - 65 to +165 C
  • 4299 SMA female/TYPE N female 50 Ohms 0 to 11 GHz      1.35 to 11GHz      - 65 to +165 C
  • 4284 SMA female/female            50 Ohms 0 to 12.4 GHz   1.35 to 11GHz      - 65 to +165 C
  • 4298 SMA male/ TYPE N female  50 Ohms 0 to 11 GHz      1.35 to 11GHz       - 65 to +165 C
  • 4282 SMA male/female              50 Ohms 0 to 12.4 GHz   1.35 to 11GHz       - 65 to +165 C
  • 4286 SMA male TERM 50 Ohm   50 Ohms DC to 18 GHz    1.25 Max at 18 GHz - 65 to +165 C
  • 4283 SMA male/male                50 Ohms 0 to 12.4 GHz   1.35 to 11GHz       - 65 to +165 C
  • 4294 SMA male/TNC female      50 Ohms 0 to 12.4 GHz   1.35 to 11GHz       - 65 to +165 C
  • 4295 SMA female/TNC female   50 Ohms 0 to 12.4 GHz   1.35 to 11GHz       - 65 to +165 C

The 72931 is a adapter kit from Pomona.

Model No

72931

Condition

New

Manufacturer

Pomona

Pomona 72931 Datasheet
