1296 Pomona Coaxial Adapter New

1296 Pomona Coaxial Adapter New

$27.99
$27.99 $0
In Stock
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Additional Features:

  • BNC (Male) To Double Stacking Binding Post Jack
  • Converts BNC based test instruments to double binding posts with banana jacks
  • Binding Posts can be vertically and horizontally stacked for test versatility
  • Wires, spade lugs, pin tip plugs and banana plugs can be attached by means of the insulated knurled thumb knob
  • Insulated thumb knob is captive to prevent misplacement
  • BNC features Nickel Plated, Beryllium Copper for tarnish resistance & long insertion life
  • BNC center contact is Gold Plated, Brass for low contact resistance
  • BNC shell is plated for tarnish resistance
View full details
More Details
Specifications
Datasheets

Materials:

  • BNC (Male): Body: Brass, Nickel Plated
  • Dielectric: PTFE
  • Center Contact: Brass, Gold Plated
  • Impedance: 50 Ohms
  • Insulation: ABS Molded to BNC (Male) and Binding
  • Post Bodies, Color: Black
  • Marking: “1296 POMONA”
  • Binding Post: Body – Brass, Nickel Plated
  • Insulated Thumb Knob
  • Polycarbonate, Color: One Black, One Red

Ratings:

  • Voltage: Hand-held testing: 30VAC/60VDC Max.
  • Hands free testing in controlled
  • voltage environments: 500 VRMS Max.
  • Operating Temperature: +50°C (+122°F) Max

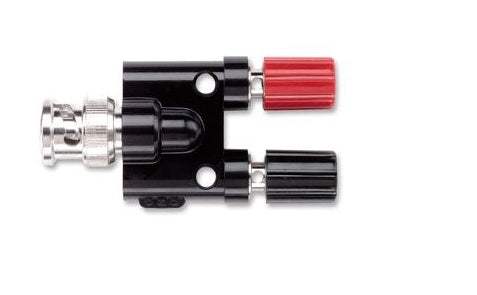

The Pomona 1296 is a BNC male to double stacking binding post jack. Binding posts can be vertically and horizontally stacked for test versatility. Wires, spade lugs, pin tip plugs and banana plugs can be attached by means of the insulated knurled thumb knob. Insulated thumb knob is captive to prevent misplacement.



Model No

1296

Condition

New

Manufacturer

Pomona

Pomona Electronics 1296
