• 810/+TRNG Fluke Vibration and Sound
1 1
New
Earn Loyalty with Rewards
Compare

810/+TRNG Fluke Vibration and Sound New

810/+TRNG Fluke Vibration and Sound New

$13,822.99
$13,822.99 $0
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
5 - 7
business days (based on availability)
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus maintenance efforts on root cause, reducing unplanned downtime
  • Fault severity scale with four severity levels helps you prioritize maintenance work
  • Repair recommendations advise technicians on corrective action
  • On-board context sensitive help provides real-time tips and guidance to new users
  • 2 GB expandable on-board memory provides enough space for your machinery’s data
  • Self-test function ensures optimal performance and more time on the job
  • Laser tachometer for accurate machine running speed promotes confident diagnoses
  • Tri-axial accelerometer reduces measurement time by 2/3 over single axis accelerometers
  • Viewer PC Software expands data storage and tracking capacity
  • Includes Training program book
View full details
More Details
Specifications
Datasheets

Accessories (Included)

  • Vibration Tester with diagnostic technology
  • Tri-axial accelerometer, magnet mount, mounting pad kit with adhesive, accelerometer quick-disconnect cable
  • Laser tachometer and storage pouch
  • Smart battery pack with cable and adapters
  • Shoulder strap and adjustable hand strap
  • Viewer PC software
  • Mini USB to USB cable
  • Getting Started Guide, illustrated quick reference guide, Users Manual CD-ROM,
  • Carrying case
  • Training Program Book

Specifications

  • Machine rotational speed range: 200 rpm to 12000 rpm
  • Diagnosis details: Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra
  • Ranging: Automatic
  • A/D converter: 4 channel, 24 bit
  • Usable bandwidth: 2 Hz to 20 kHz
  • Sampling: 51.2 Hz
  • Digital signal processing functions: Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging
  • Sampling rate: 2.5 kHz to 50 kHz
  • Dynamic range: 128 dB
  • Signal to noise ratio: 100 dB
  • FFT resolution: 800 lines
  • Spectral windows: Hanning
  • Frequency units: Hz, orders, cpm
  • AC adapter input voltage: 100 Vac to 240 Vac, Input frequency: 50/60 Hz
  • Warranty: Three-years
  • Sensitivity: 100 mV/g (± 5 %, 25 °C)
  • Acceleration range: 80 g peak
  • Vibration limit: 500 g peak
  • Shock limit: 5000 g peak

The new Fluke 810 helps you locate and diagnose common mechanical problems and prioritize repair actions in three simple steps.

Model No

810/+TRNG

Condition

New

Manufacturer

Fluke

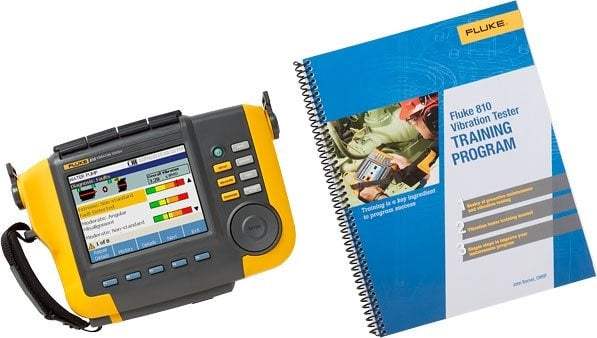

Fluke 810 Vibration Tester
