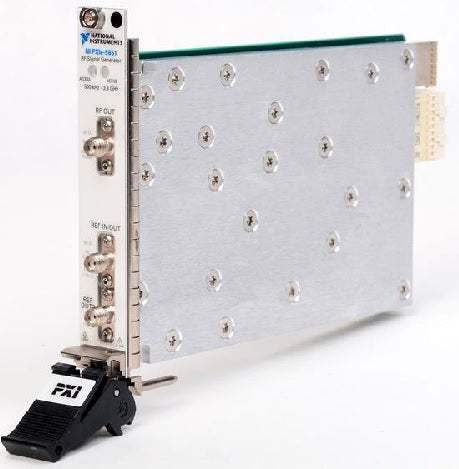

PXI-5651 National Instruments PXI Used

PXI-5651 National Instruments PXI Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

  • 500 kHz to 6.6 GHz Frequency Range
  • Less Than 2 ms Frequency Sweep Tuning Speed Typical
  • Less Than 1 ppb Frequency Resolution
  • -110 dBc/Hz Phase Noise at 1 GHz, 10 kHz Offset Typical
  • FM, 2-FSK, OOK Modulation
  • Use as Tunable Local Oscillator or Clock Source
Share on
View full details
More Details
Specifications
Datasheets

The National Instruments PXI-565x Series RF Analog Signal Generator are continuous-wave with modulation capability. The new signal generators extend PXI waveform generation to 6.6 GHz. In a single 3U PXI slot, NI PXI / PXIe signal generators provide exceptional phase noise and signal jitter.

The new RF and microwave signal generators use direct digital synthesis (DDS) for high-resolution frequency hopping or phase continuous sweeping for fixture and device characterization applications. They are ideal for clocking nonstandard sample rates, such as WCDMA signals at baseband or intermediate frequency (IF). With these versatile signal generators, you can perform analog and digital modulation through the onboard DDS circuit, which gives you frequency modulation and frequency-shift keying for applications such as bit-error rate testing, antenna testing, or even keyless entry. Amplitude modulation is also available through on-off keying.

Model No

PXI-5651

Condition

Used

Manufacturer

National Instruments

National Instruments PXI-5651
