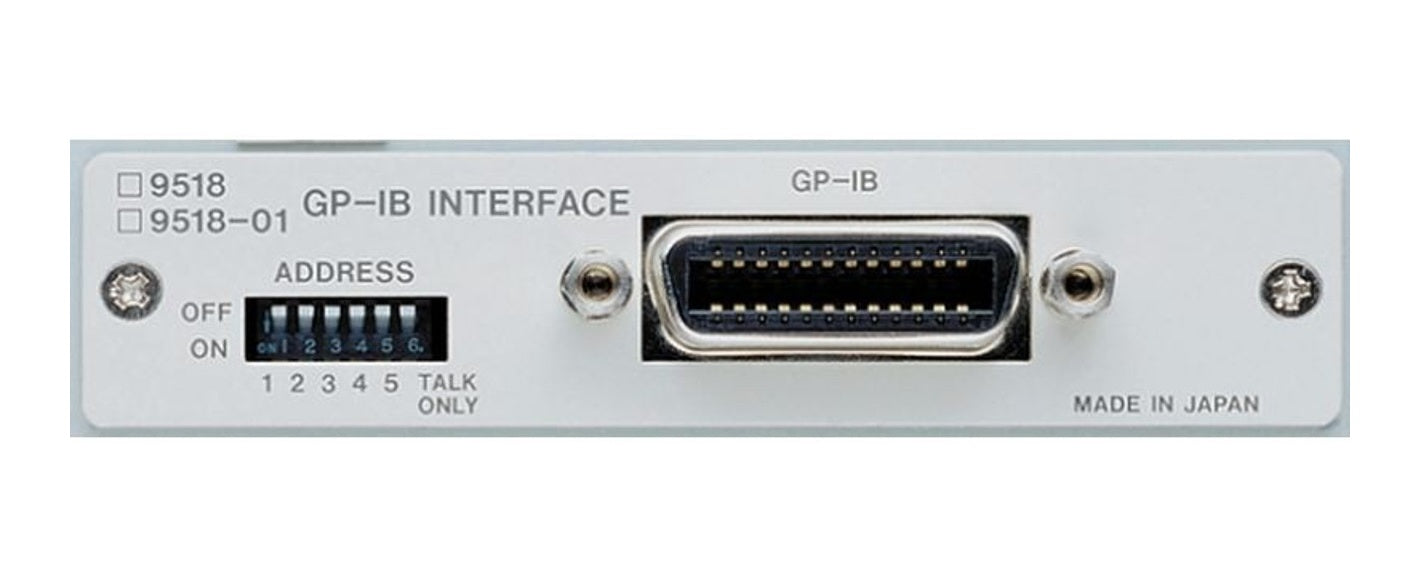

9518-02 Hioki Module New

9518-02 Hioki Module New

$461
$461 $461
Shipping calculated at checkout.
Request a Quote
Estimated Delivery in
2-3
business days
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features:

GP-IB Interface for 3157-01

  • All of the functions of the 3157 main unit, except for powering on and off, can be controlled via the GP-IB interface. However, the ":STARt" command works in a state in which the momentary OUT settings are disabled even though the momentary OUT settings have been set.
  • The beeper sound can be turned on and off.
  • The unit can be reset.
  • IEEE 488.2-1987 standard (essential) commands can be used.
View full details
More Details
Specifications

GP-IB Interface

By connecting the 9518-02 GP-IB INTERFACE to the 3157 AC GROUNDING HiTESTER, it is possible to control all the functions of the main unit (except for powering on and off) via the GP-IB bus. This unit is compliance with the following standard.

Compliance standard: IEEE 488.1-1987

Further, the 9518-02 is designed with reference to the following standard:

Reference standard: IEEE 488.2-1987

On the 9518-02, if the output queue becomes full, it is cleared and a query error is generated. This differs from the IEEE 488.2 specification, which only stipulates the clearing of the output queue and the outputting of a query error when a deadlock state occurs, that is, when both the input buffer and the output queue have become full, and continuation of processing has become impossible.

Model No

9518-02

Condition

New

Manufacturer

Hioki
