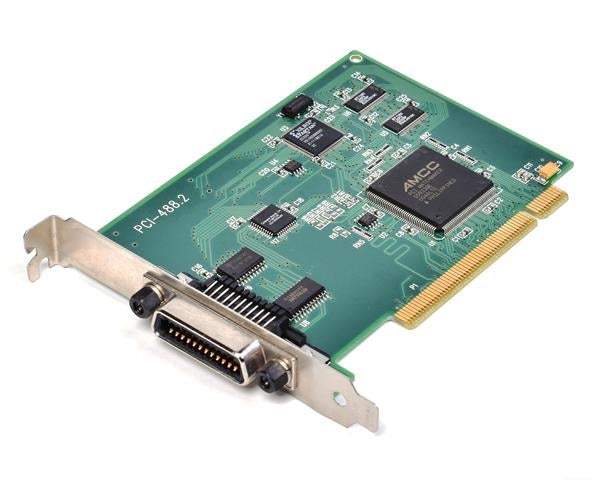

PCI-488.2 National Instruments Interface Used

PCI-488.2 National Instruments Interface Used

Shipping calculated at checkout.
check availability
Request a Quote
Login & Get 2% Back on Purchases
Login or Sign Up for Loyalty

Features

  • Complete Talker/Listener/Controller
  • Data Transfer Rates Over 1 MB/sec
  • REP-INSW Block Transfer
  • 1024 Word FIFO Buffer
  • High Speed State Machine Bus Manager
Share on
View full details
More Details
Specifications

The Computer Boards PCI-GPIB IEEE-488.2 Interface PCI Card converts any PCI bus personal computer into an instrumentation control and data acquisition system. Connect up to 14 instruments using standard IEEE-488 cables such as the C488-2M, 2 meter IEEE-488 interface cable. The PCI-GPIB is designed around the new industry standard CB7210.2 GPIB chip.The PCI-GPIB transfers data over the GPIB at rates in excess of 1 million bytes per second using the maximum IEEE-488 specification cable length (2 meters times the # of devices). A 1024 Word FIFO buffer and the advanced REP-INSW ISR transfer method provide all the horsepower required to achieve the highest possible rates.Controlled by ComputerBoards' advanced High Speed State Machine Bus Manager, the CB7210.2 and FIFO buffer are able to absorb all the information coming from the highest speed instruments.

Model No

PCI-488.2

Condition

Used

Manufacturer

National Instruments
